Description

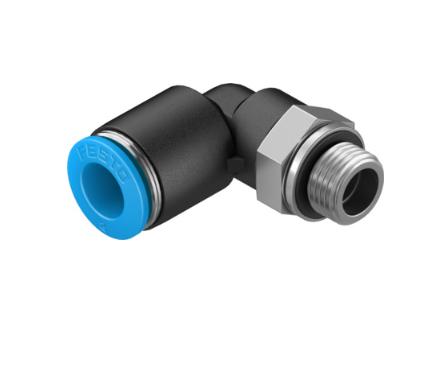

The QSL-G1/8-8 Push-in L-Fitting is a high-quality pneumatic connector engineered for efficient right-angle tubing connections in compressed air systems. Its 90-degree design allows flexible hose routing where space constraints or directional changes are required, making it ideal for compact automation setups.
Featuring a G1/8 male threaded port on one side and a push-in connection for 8 mm outside-diameter tubing on the other, this fitting enables quick installation without the need for specialized tools. The push-in mechanism ensures a reliable seal while allowing easy tube insertion and removal during maintenance.
Built for durability, the fitting supports a wide pressure range from vacuum (-0.95 bar) up to 14 bar, making it suitable for both suction and positive pressure applications. It also operates reliably across a broad ambient temperature range of −10 °C to +80 °C, ensuring dependable performance in various industrial environments.
Compact, lightweight, and robust, the QSL-G1/8-8 is ideal for pneumatic control panels, machinery, robotics, packaging equipment, and general automation systems requiring dependable air connections and efficient space utilization.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Push-in L-Fitting |
| Part Number | QSL-G1/8-8 |
| Order Code | 186119 |
| Pneumatic Connection — Port 1 | Male thread G1/8 |
| Pneumatic Connection — Port 2 | Push-in for 8 mm OD tubing |
| Nominal Size | 6 mm |
| Operating Pressure | −0.95 bar to 14 bar |
| Ambient Temperature Range | −10 °C to +80 °C |
| Configuration | 90° elbow (L-fitting) |
| Product Weight | 15 g |
| Application | Compressed air and pneumatic systems |
