Description

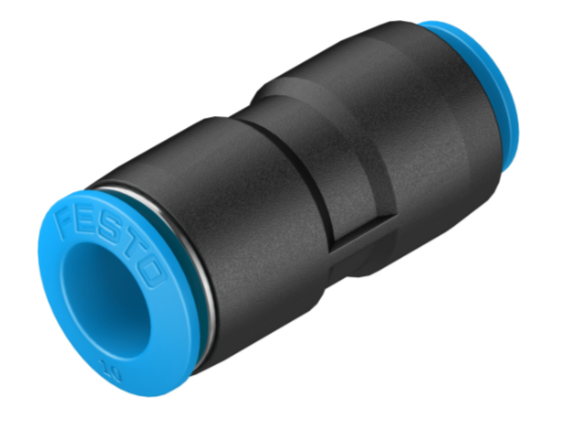

The QS-10 Push-in Connector from Festo is a straight, compact fitting designed for quick and secure connection of 10 mm outer diameter pneumatic tubing. Utilizing the push-pull principle, it enables fast and tool-free assembly, making it ideal for applications requiring easy maintenance and setup.
Built with PBT housing, high-alloy stainless steel claws, and a blue POM releasing ring, the QS-10 is RoHS-compliant and supports operation under a wide range of temperatures (-10 °C to 80 °C) and pressures. It operates safely with compressed air and ice-free water, with a maximum pressure rating of 1.4 MPa (203 psi) under temperature-dependent conditions.
This connector also complies with cleanroom standards (ISO Class 4) and LABS (PWIS) conformity to VDMA24364-B1/B2-L, making it suitable for sensitive or semi-clean environments.
Specifications
| Attribute | Details |
|---|---|
| Part Number | QS-10 |
| Design | Straight push-in connector |
| Tubing Compatibility | 10 mm OD tubing (both ends) |
| Nominal Width | 9 mm |
| Mounting Position | Any |
| Pack Size | 10 |
| Connection Principle | Push-pull |
| Operating Medium | Compressed air (ISO 8573-1:2010 [7:-:-]), Water |
| Operating Pressure Range | -0.095 to 0.6 MPa (up to 1.4 MPa temperature-dependent) |
| Operating Pressure (Water, Max) | 0.6 MPa at 50 °C |
| Ambient Temperature Range | -10 °C to 80 °C |
| Cleanroom Class | Class 4 (ISO 14644-1) |
| Corrosion Resistance Class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) Conformity | VDMA24364-B1/B2-L |
| Releasing Ring Color | Blue |
| Product Weight | 16 g |
| Material – Housing | PBT |
| Material – Releasing Ring | POM |
| Material – Tubing Seal | NBR |
| Material – Tube Retaining Claw | High-alloy stainless steel |
| RoHS Compliance | Yes |
