Description

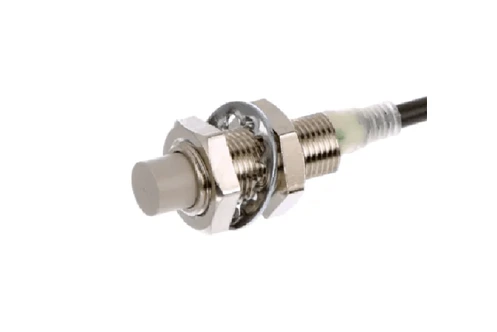

The Omron E2E-X5ME1 inductive proximity sensor is a reliable solution for non-contact object detection in industrial automation. Built with a durable nickel-plated brass housing and PBT face, this M12 threaded sensor offers a maximum sensing distance of 5.0 mm with NPN normally open (NO) output. Its unshielded design allows longer sensing ranges, while IP67 protection ensures dependable performance in demanding environments.
Designed for flexibility, the E2E-X5ME1 operates on 12 to 24 VDC, supports up to 200 mA control output current, and features a 2-meter connection cable for easy integration. With a fast 0.4 kHz response frequency and operating temperature range from -25°C to +70°C, this proximity sensor is ideal for applications such as machine automation, conveyors, and assembly lines where precision and durability are critical.
Specifications
| Attribute | Details |
|---|---|
| Series | E2E DC 3-wire |
| Sensor Type | Inductive Proximity Sensor |
| Mounting Style | Cylindrical Threaded (M12) |
| Mounting Type | Non-Shielded / Non-Flush |
| Sensing Distance | 5.0 mm (max) |
| Sensing Direction | End Sensing |
| Power Supply | 12–24 VDC |
| Output Type | NPN, Normally Open (NO) |
| Control Output Current | 200 mA max |
| Response Frequency | 0.4 kHz |
| Connection Type | Cable, 2 m length |
| Housing Material | Nickel-plated brass with PBT face |
| Protection Rating | IP67 |
| Hysteresis | <10% |
| Operating Temperature | -25°C to +70°C |
| Dimensions | M12 threaded, unshielded |
| Weight | 0.72 lbs (per unit) |
