Description

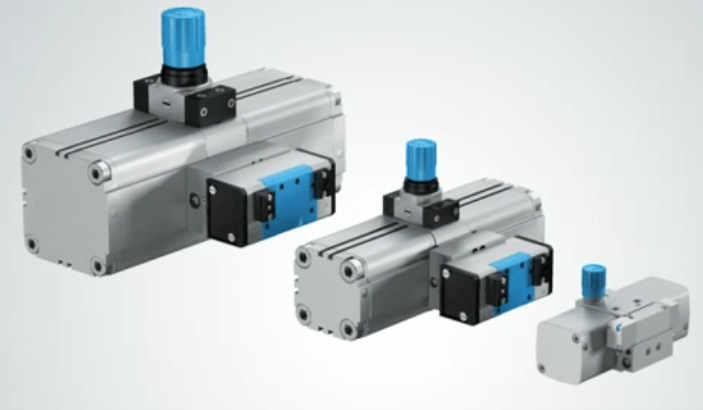

The DPA-100-16-CRVZS20 Pressure Booster is a robust pneumatic solution engineered to amplify compressed air pressure for demanding industrial applications. Featuring an integrated 20-liter air reservoir and a large 100 mm piston diameter, this unit delivers stable high-pressure output even under fluctuating supply conditions.
Designed for efficiency and reliability, the booster accepts inlet pressures between 2 and 8 bar and boosts them to an adjustable output range of 4 to 16 bar. The built-in check valve prevents backflow, while the analog pressure gauge enables accurate real-time monitoring. A condensate drain positioned underneath ensures moisture removal, enhancing system longevity and performance.
With a QS-16 pneumatic connection for port 1, this pressure booster is ideal for applications requiring increased pneumatic force, higher actuator performance, or stable high-pressure air supply in automation, manufacturing, and process industries.
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Pneumatic Pressure Booster |
| Model | DPA-100-16-CRVZS20 |
| Part Number | 552937 |
| Pneumatic Connection (Port 1) | QS-16 |
| Inlet Pressure | 2 – 8 bar |
| Output Pressure | 4 – 16 bar |
| Piston Diameter | 100 mm |
| Reservoir Volume | 20 L |
| Design | With integrated air reservoir |
| Pressure Monitoring | Analog pressure gauge |
| Check Valve | Included |
| Mounting Position | Condensate drain underneath |
| Product Weight | 30,000 g (30 kg) |
| Pressure Display | Via pressure gauge |
| Symbol | 00991432 |
