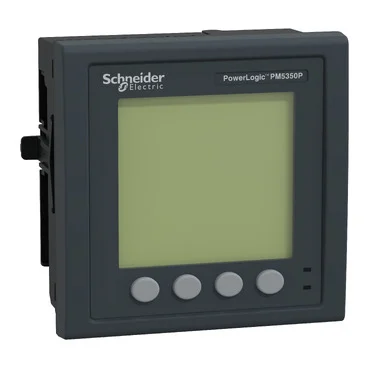

PowerLogic PM5350P Power Meter – METSEPM5350P
High-accuracy (Class 0.5S) flush-mounted power meter with multi-tariff support, real-time clock, harmonic measurement, and Modbus communication, ideal for energy monitoring and power quality analysis.
Original price was: $706.33.$673.80Current price is: $673.80.
(Save $32.53)
In stock
Description
The PowerLogic PM5350P (METSEPM5350P) is a precision power meter designed for comprehensive energy monitoring and power quality analysis in industrial, commercial, and utility applications. Featuring a 96 x 96 mm backlit LCD display, it offers Class 0.5S accuracy in compliance with IEC 62053-22 and samples at 64 samples per cycle for detailed measurements.
It measures energy, active and reactive power, voltage, current, frequency, power factor, and harmonics up to the 31st order. Its multi-tariff function and real-time clock enable detailed billing and time-of-use energy management. The meter supports multiple wiring configurations, including single-phase, three-phase, and three-phase + neutral, with a line-rated current of 1A or 5A.
The device accepts a wide auxiliary power supply (85–265 VAC / 100–300 VDC) and offers CAT III (up to 480V phase-phase, 277V phase-neutral) and CAT II (up to 690V phase-phase, 400V phase-neutral) safety ratings. It includes non-volatile memory, four digital inputs, two relay outputs, and RS485 communication supporting Modbus RTU and ASCII.
Compact and robust, the PM5350P is flush-mounted for panel integration, making it ideal for power distribution monitoring, facility energy management, and cost allocation.
Specifications
| Attribute | Value |
|---|---|
| Part Number | METSEPM5350P |
| Range | PowerLogic |
| Product Name | PowerLogic PM5350 |
| Device Short Name | PM5350P |
| Product Type | Power Meter |
| Display Type | LCD, white backlight |
| Display Resolution | 128 × 128 pixels |
| Display Colour | Monochrome |
| Accuracy Class | Class 0.5S (IEC 62053-22) |
| Sampling Rate | 64 samples/cycle |
| Measured Parameters | Energy, active/reactive power, voltage, current, frequency, power factor, harmonics up to 31st |
| Power Supply | 85–265 VAC / 100–300 VDC |
| Rated Current Input | 1A or 5A |
| Network Types | Single-phase, three-phase, three-phase + neutral |
| Measurement Voltage (Phase-Phase) | 20–480 V AC (CAT III), 20–690 V AC (CAT II) |
| Measurement Voltage (Phase-Neutral) | 20–277 V AC (CAT III), 20–400 V AC (CAT II) |
| Frequency Range | 45–65 Hz |
| Communication | RS485, Modbus RTU/ASCII (2-wire) |
| Digital Inputs | 4 |
| Relay Outputs | 2 |
| Memory | Non-volatile |
| Width | 96 mm |
| Height | 96 mm |
| Depth (Embedded) | 44 mm |
| Depth (Outside) | 13 mm |
| Total Depth | 57 mm |
| Net Weight | 0.25 kg |
Additional information
| Weight | 0.25 kg |
|---|---|
| Dimensions | 57 × 96 × 96 mm |
