Description

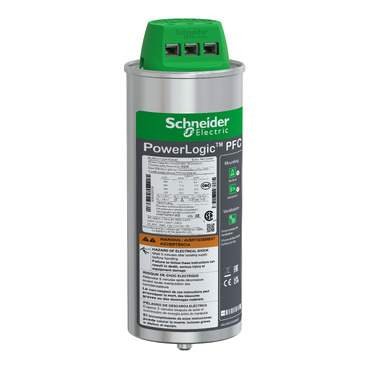

The PowerLogic Heavy Duty PFC Capacitor (BLRCH125A150B44) from the HDuty series is designed for use in stringent operating conditions, where voltage disturbances and non-linear loads are present.
These capacitors are particularly suited for installations where harmonic currents circulate within the system. To handle this, the capacitor is built with an increased current capacity, ensuring durability and consistent performance.
It delivers a rated output of 12.5 kVAr at 440 V AC, 50 Hz, and operates efficiently across 50/60 Hz networks.
Compliant with:
- IEC 60831-1
- IEC 60831-2
This capacitor is ideal for industrial and commercial applications, especially where system stability and long service life are critical.
Specifications
| Feature | Specification |
|---|---|
| Product Code | BLRCH125A150B44 |
| Product Name | PowerLogic PFC Capacitor |
| Range | PowerLogic |
| Series Name | HDuty |
| Product Type | Heavy Duty Capacitor |
| Rated Reactive Power | 12.5 kVAr (at 440 V, 50 Hz) |
| Network Voltage | 440 V AC |
| Network Frequency | 50/60 Hz |
| Application | Power Factor Correction (stringent conditions) |
| Harmonic Suitability | Suitable for disturbed networks / non-linear loads |
| Standards | IEC 60831-1, IEC 60831-2 |
| Terminal Type | ClampTite |
| Height | 242 mm |
| Width | 114 mm |
| Length | 285 mm |
| Weight | 1.6 kg |
