Description

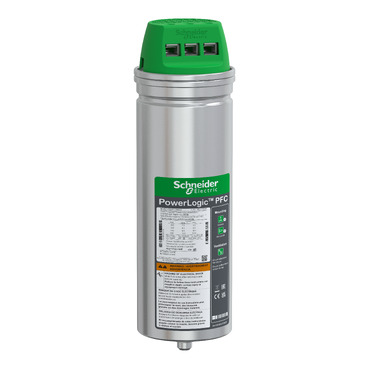

The PowerLogic Heavy Duty PFC Capacitor (BLRCH125A150B40) belongs to the HDuty series and is built to provide efficient power factor correction under stringent operating conditions.
This capacitor is ideal for applications where:
- Voltage disturbances are present
- Non-linear loads generate harmonic currents
- Higher durability and reliability are required
To withstand these conditions, the capacitor is designed with enhanced current handling capability, allowing it to manage harmonic circulation effectively.
It delivers a rated output of 12.5 kVAr at 400 V AC, 50 Hz, and operates across 50/60 Hz networks.
The unit complies with the following standards:
- IEC 60831-1
- IEC 60831-2
This capacitor is well-suited for industrial facilities, commercial installations, and systems with harmonic presence, where performance stability is essential.
Specifications
| Feature | Specification |
|---|---|
| Product Code | BLRCH125A150B40 |
| Product Name | PowerLogic PFC Capacitor |
| Range | PowerLogic |
| Series Name | HDuty |
| Product Type | Heavy Duty Capacitor |
| Rated Reactive Power | 12.5 kVAr (at 400 V, 50 Hz) |
| Network Voltage | 400 V AC |
| Network Frequency | 50/60 Hz |
| Application | Power Factor Correction (stringent conditions) |
| Harmonic Suitability | Suitable for disturbed networks / non-linear loads |
| Standards | IEC 60831-1, IEC 60831-2 |
| Terminal Type | ClampTite |
| Height | 242 mm |
| Width | 125 mm |
| Length | 285 mm |
| Weight | 1.792 kg |
