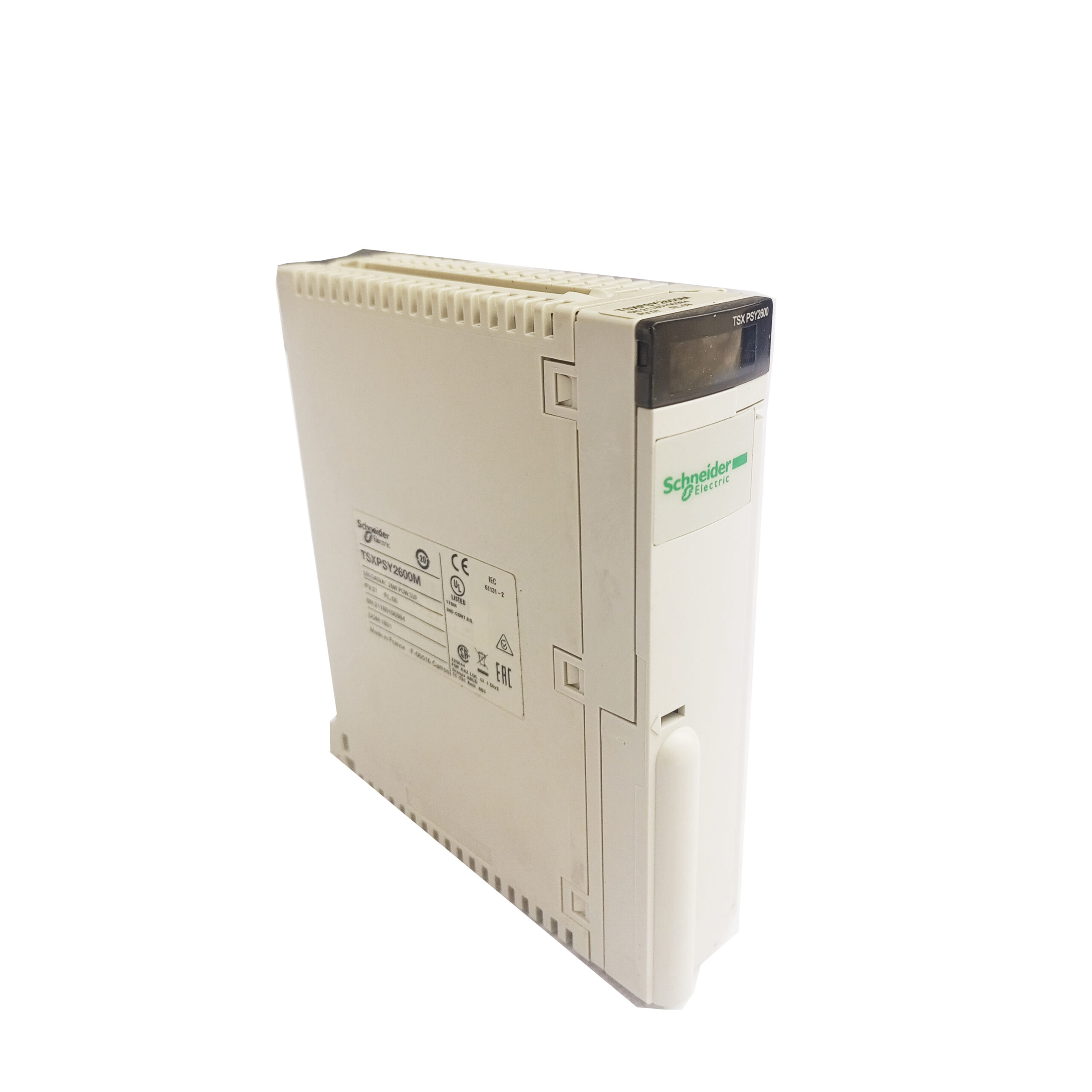

Power Supply Module – TSXPSY2600M

The Modicon TSXPSY2600M Power Supply Module is a robust and efficient power solution for industrial automation applications. Designed for the Modicon Premium Automation platform, this module operates on a 100-240V AC input range (85-264V) with a 50/60Hz frequency. It delivers a total secondary power of 26W, including 15W at 24V DC and 25W at 5V DC, ensuring stable and reliable performance for connected devices.

Built for durability, the TSXPSY2600M features overload, overvoltage, and short-circuit protection on the secondary circuit, safeguarding critical automation components. It includes LED indicators for power status and battery faults, allowing quick diagnostics. With an IP20 protection rating, compliance with global industrial standards (IEC 61131-2, UL 508, CSA certifications), and an 18-month warranty, this power supply module is an essential component for seamless automation system integration.

Specification:

• Product Name: Modicon TSXPSY2600M Power Supply Module

• Primary Voltage: 100-240V AC (85-264V)

• Frequency: 50/60Hz (47-63Hz range)

• Input Current:

  • 300mA at 240V

  • 500mA at 100V

• Dimensions & Weight:

  • Size: 26cm (L) x 18cm (W) x 6cm (H)

  • Weight: 0.51kg (net), 619g (packaged)

• Warranty: 18 months
