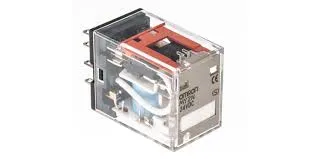

Power Relay – MY2N 24VDC
Omron MY2N DC24 miniature power relay, 2-pole DPDT, plug-in terminals, LED indicator, 24 VDC coil, 10 A contact rating.
Original price was: $8.69.$8.24Current price is: $8.24.
(Save $0.45)
In stock
Description
The Omron MY2N DC24 is a miniature industrial power relay designed for versatile applications requiring reliable switching performance. This relay features a 2-pole, DPDT contact configuration, supports up to 10 A at 220 V AC or 24 V DC, and provides a switched voltage rating of up to 250 V AC or 125 V DC.
Equipped with an LED operation indicator for easy status monitoring, the MY2N DC24 relay ensures quick installation with plug-in terminals and socket mounting. With a compact body size of 28 x 21.5 x 36 mm and durable design, it is well-suited for industrial automation, machinery, and control systems.
Specifications
| Category | Details |
|---|---|
| Manufacturer | Omron |
| Series | MY2 |
| Product type | Miniature power relay |
| Contact configuration | DPDT (2-pole) |
| Contact current max. | 10 A |
| AC contact rating (resistive load) | 10 A / 220 V AC |
| DC contact rating (resistive load) | 10 A / 24 V DC |
| Max. switched voltage | 125 V DC, 250 V AC |
| Operating indicator | LED |
| Degree of protection | Closed type (with cover) |
| Terminal structure | Plug-in terminals |
| Mounting | Socket |
| Coil voltage | 24 VDC |
| Coil resistance | 636 Ω |
| Coil current | 37.7 mA |
| Coil power consumption | 0.9 W |
| Operate time | 20 ms |
| Release time | 20 ms |
| Body dimensions | 28 × 21.5 × 36 mm |
| Lead dimensions | 2.5 × 0.5 mm |
| Operating temperature | -55 to +70 °C |
| Relay variant | Industrial |
| Weight | 0.035 kg |
Additional information
| Weight | 0.035 kg |
|---|
