Description

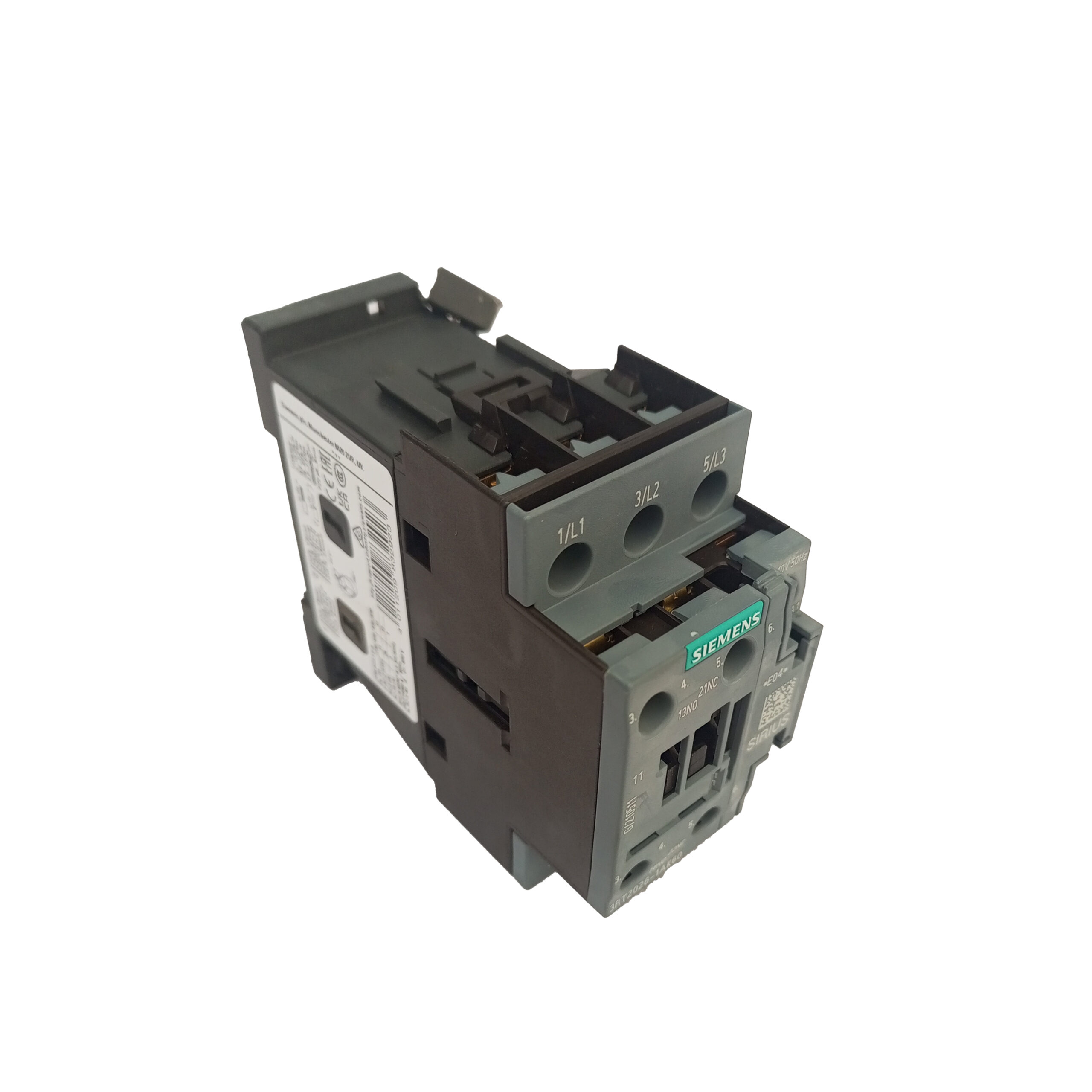

The Siemens 3RT2026-1AK60 is a high-performance power contactor from the SIRIUS 3RT series, designed for reliable motor switching and control applications. It supports AC-3e/AC-3 operation with a 25A rated current and 11kW power rating at 400V. This 3-pole contactor operates at 110V AC (50Hz) or 120V AC (60Hz) and features built-in auxiliary contacts (1 NO + 1 NC) for additional control flexibility. Its compact size (S0) and screw terminal connections ensure easy installation and integration into industrial control systems. Ideal for applications in automation, motor control, and power distribution.
Specification
- Brand: Siemens
- Product Series: SIRIUS 3RT
- Model Number: 3RT2026-1AK60
- Contactor Type: Power Contactor
- Operating Voltage: 400V AC
- Rated Current (AC-3e/AC-3): 25A
- Power Rating: 11kW at 400V
- Number of Poles: 3
- Coil Voltage: 110V AC (50Hz) / 120V AC (60Hz)
- Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
- Terminal Type: Screw Terminal
- Size: S0
- Product Family: SIRIUS 3RT Contactors (3-pole, up to 250kW)
- Lifecycle Status: Active Product
