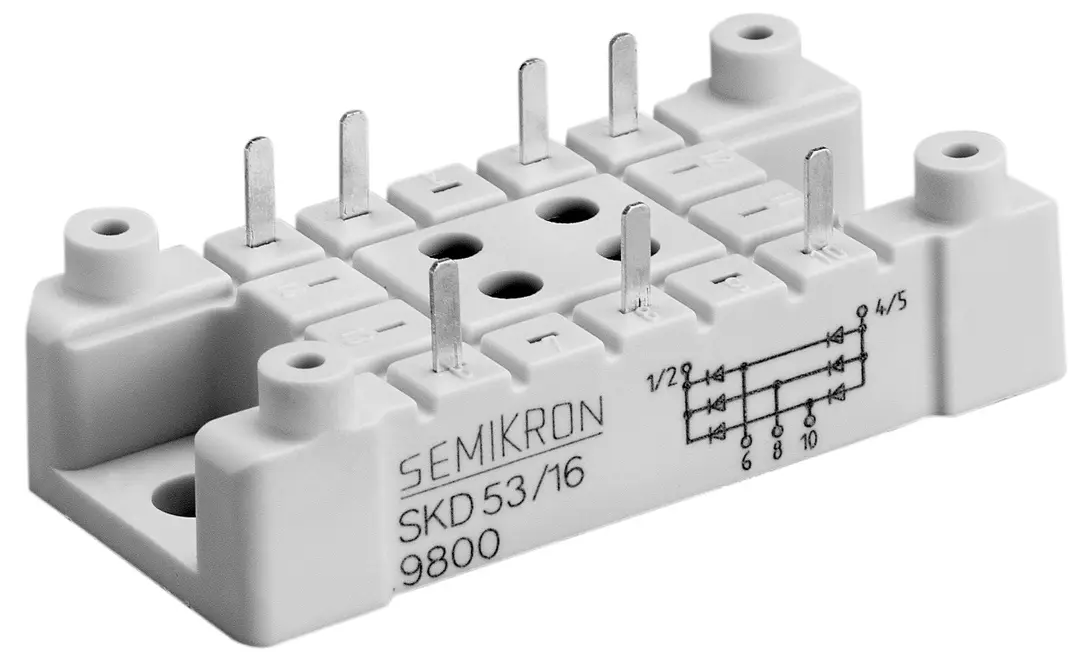

Power Bridge Rectifier Module – SKD 53/16
Semikron SKD 53/16 power bridge rectifier module, 53A, 1600V, compact G55 housing. Reliable for three-phase rectifiers, drives, motor supplies, and battery chargers.
Original price was: $67.13.$63.44Current price is: $63.44.
(Save $3.69)
In stock
Description
The Semikron SKD 53/16 is a high-performance power bridge rectifier module designed for industrial and power electronic applications. Built in a compact G55 housing, it delivers a current rating of 53A, blocking voltage up to 1600V, and a surge current capacity of 270A.
Manufactured with glass-passivated silicon chips and a direct copper bonded (DCB) aluminum baseplate, the SKD 53/16 offers low thermal impedance and high reliability. It is also UL recognition applied for, making it a dependable choice for critical power systems.
The module is suitable for PCB mounting and wave soldering, with the option to fasten using self-tapping screws for high-vibration environments. Typical applications include three-phase rectifiers for power supplies, input rectifiers for variable frequency drives, DC motor field supplies, and battery charger rectifiers.
Specifications
| Category | Details |
|---|---|
| Product Reference | SKD 53/16 |
| Manufacturer | Semikron |
| Product Type | Power Bridge Rectifier Module |
| Product Line | Power Bridge |
| Housing Type | G55 |
| Legacy Part Number | 07232850 |
| Country of Origin | Italy |
| Technology | Bridge |
| Topology | Rectifier |
| Current Rating | 53 A |
| Surge Current | 270 A |
| Voltage Rating | 1600 V |
| Blocking Voltage | Up to 1800 V |
| Dimensions (L × W × H) | 63.5 × 29.5 × 17 mm |
| Baseplate | DCB aluminum (direct copper bonded) |
| Chip Technology | Glass-passivated silicon |
| Mounting | PCB mounting, wave soldering (screw fastening recommended in high-vibration applications) |
| Recognition | UL recognition applied for |
| Typical Applications | Power supplies, VFD input rectifiers, DC motor field supplies, battery charger rectifiers |
| Product Status | In production |
| Gross Weight | 0.11 kg |
| Net Weight | 0.027 kg |
Additional information
| Weight | 0.11 kg |
|---|
