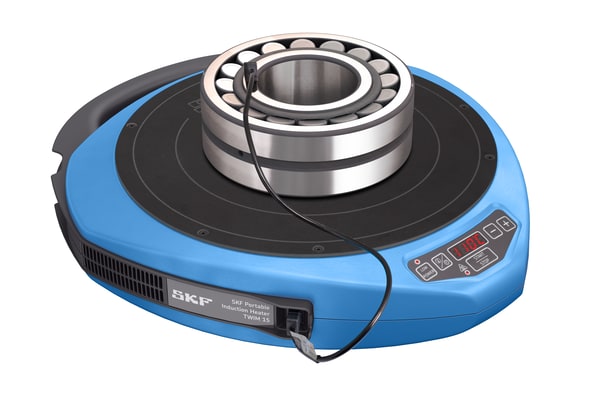

Portable Induction Heater – TWIM 15/230V
The SKF TWIM 15/230V is a portable induction heater designed for safe and efficient hot mounting of bearings and other metallic components. Compact, lightweight, and robust, it supports workpieces up to 20 kg with automatic temperature control and adjustable power settings for precise heating.
Original price was: $2 715.79.$2 573.79Current price is: $2 573.79.
(Save $142.00)
In stock
Description
The SKF TWIM 15/230V induction heater is a compact and versatile solution for bearing mounting in workshops or field environments. Designed to handle bearings and other ring-shaped metallic components weighing up to 20 kg, it combines portability with powerful and safe heating performance. Its smart operating software automatically adjusts heating speed and power based on the component size, ensuring efficiency and reliability.
Equipped with automatic temperature and time control, the TWIM 15 allows heating up to 200 °C with steps as fine as 1 °C. Multiple power modes make it suitable for both standard and sensitive bearings, including those with reduced clearance. The integrated thermometer mode, magnetic probe, and demagnetisation function enhance accuracy and safety during operation.
Built with a glassfiber-reinforced housing, the TWIM 15 is lightweight yet durable. It requires no support yokes, making setup and operation simple. Delivered with gloves, probe, and power cable in the package, it offers a complete ready-to-use solution for industrial, maintenance, and field service applications.
Specification Table
| Attribute | Details |
|---|---|
| Part Number | TWIM 15/230V |
| Tool Type | Portable induction heater |
| Application | Heating of bearings and metallic components for hot mounting |
| Workpiece Bore Diameter (Mounting) | 30 – 320 mm |
| Workpiece Width (Max) | 85 mm |
| Workpiece Weight (Max) | 20 kg |
| Heating Temperature Control | 40 – 200 °C |
| Heating Temperature Steps | 1 °C |
| Heating Time Control | 0.1 – 60 min |
| Heating Time Steps | 0.1 min |
| Power Consumption (Max) | 2.3 kW |
| Current Consumption (Max) | 10 A |
| Voltage | 220 – 240 V |
| Power Settings | 10%, 25%, 50%, 100% |
| Temperature Measurement | Magnetic probe, K-type |
| Thermometer Mode | Yes |
| Time Mode | Yes |
| Demagnetisation After Heating | 0 A/cm |
| Error Guiding Codes | Yes |
| Thermal Overload Protection | Yes |
| Cooling | Forced air cooling |
| Housing Material | Glassfiber-filled PA |
| Dimensions (W x L x H) | 450 x 500 x 100 mm |
| Heating Example | 6320 bearing, 7.1 kg, 110 °C, 5 min 20 sec |
| Colour | Blue / Dark Grey |
| Content | Heater, power cable, probe, gloves, instructions |
| Product Net Weight | 6.64 kg |
| eClass Code | 23-05-19-01 |
| UNSPSC Code | 40101831 |
Additional information
| Weight | 6.64 kg |
|---|
