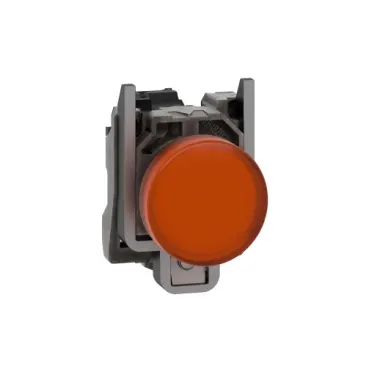

Pilot light, Harmony XB4 – XB4BVM5
The Harmony XB4 XB4BVM5 orange pilot light features a robust metal bezel, plain lens, and universal LED for bright, long-lasting indication. Designed for 230–240V AC operation, it fits standard 22mm cut-outs, offers screw-clamp connections, and withstands harsh environments with IP66/IP67/IP69/IP69K protection.
Original price was: $7.75.$7.39Current price is: $7.39.
(Save $0.36)
In stock
Description
The XB4BVM5 is a modular orange pilot light from Schneider Electric’s Harmony XB4 range, built with a chromium-plated metal bezel and plain lens for clear, durable indication in industrial environments.
It operates on 230…240V AC using a long-lasting universal LED, ensuring high visibility while minimizing maintenance needs. Designed for Ø22 mm cut-outs, it offers quick installation with screw-clamp terminals and secure fixing via a zamak collar.
Engineered for demanding applications, it provides IP66 / IP67 / IP69 / IP69K protection, making it highly resistant to dust, water, vibration, and impacts. Its robust construction and bright illumination make it ideal for machinery status indication, process control panels, and other heavy-duty industrial uses.
Specifications
| Attribute | Value |
|---|---|
| Range of Product | Harmony XB4 |
| Part Number | XB4BVM5 |
| Product Type | Pilot light |
| Device Short Name | XB4 |
| Bezel Material | Chromium plated metal |
| Fixing Collar Material | Zamak |
| Mounting Diameter | Ø22.5 mm (0.9 in) |
| Head Type | Standard |
| Shape | Round |
| Lens/Cap Colour | Orange |
| Lens Type | Plain lens |
| Light Source | Universal LED |
| Bulb Base | Integral LED |
| Light Source Colour | Orange |
| Rated Supply Voltage | 230…240 V AC |
| Degree of Protection | IP66 / IP67 / IP69 / IP69K |
| Terminal Type | Screw clamp |
| Terminal Reference | (X1-X2)PL |
| Overall Height | 47 mm (1.9 in) |
| Overall Width | 30 mm (1.2 in) |
| Overall Depth | 54 mm (2.1 in) |
| Net Weight | 0.08 kg (0.18 lb) |
| Sale Per Indivisible Quantity | 1 |
Additional information
| Weight | 0.08 kg |
|---|---|
| Dimensions | 54 × 30 × 47 mm |
