Description

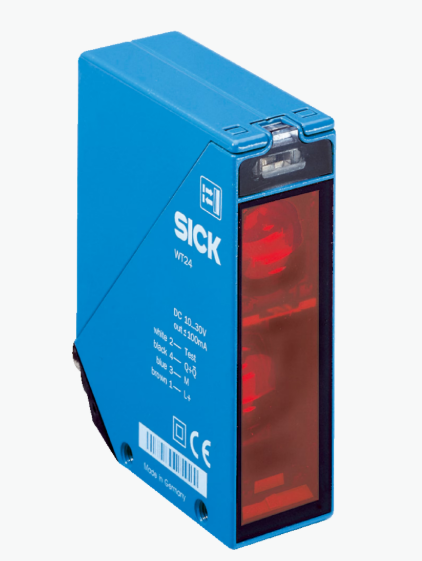

The WT24-2B410 from the W24 series is a photoelectric proximity sensor equipped with advanced background suppression, offering reliable object detection across a sensing range of 100 mm to 2,500 mm. Its infrared LED light source ensures precise performance even in environments with varying surface colors or reflectivity.
With a rugged rectangular housing and a large light spot of Ø 80 mm at 2.5 m, this sensor is ideal for position detection, object presence verification, and distance sensing in automation, logistics, and industrial machinery. A manual potentiometer allows for easy adjustment and calibration on-site.
Specifications:
-
Model: WT24-2B410
-
Series: W24
-
Sensor Type: Photoelectric proximity sensor
-
Sensing Principle: Background suppression
-
Housing Design: Rectangular
-
Dimensions (W x H x D): 27 mm x 87.5 mm x 65 mm
-
Sensing Range (typical & max): 100 mm … 2,500 mm
-
Light Source: Infrared LED
-
Light Spot Size: Ø 80 mm at 2,500 mm
-
Adjustment: Manual Potentiometer
-
Target Object: 90% reflective (based on DIN 5033 white standard)
