Photoelectric Sensor – WTB2S-2P3160

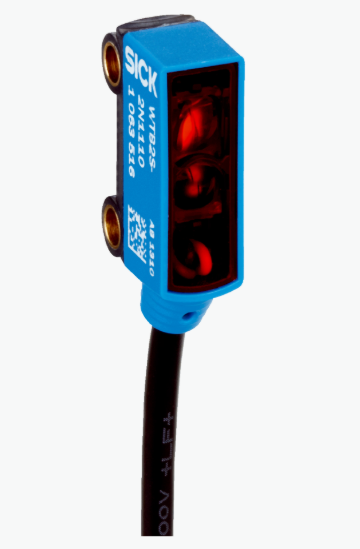

The WTB2S-2P3160 | W2 miniature photoelectric sensor is engineered for precise object detection in confined applications. With a slim 7.7 mm wide housing and reliable background suppression, it offers consistent detection within a 1 mm to 66 mm range, optimized for small objects even in complex backgrounds.

Its PinPoint red LED ensures a sharp, highly visible light spot (Ø 4.5 mm at 40 mm), supporting accurate alignment and reliable sensing. Delivering high-speed operation with a response time under 0.5 ms and 1,000 Hz switching frequency, this sensor fits seamlessly into high-speed automation tasks.

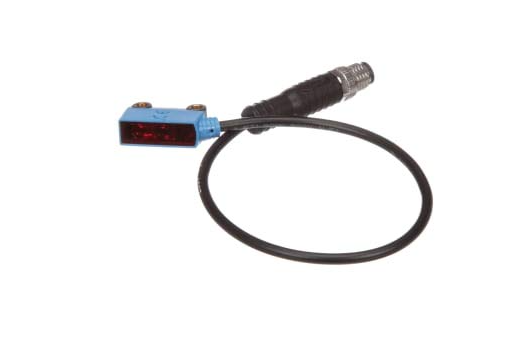

Built with an IP67-rated ABS/PC housing, and prewired with a 200 mm cable and M8 3-pin connector, the WTB2S-2P3160 ensures both durability and quick installation. Ideal for electronics manufacturing, assembly lines, and miniature conveyor systems.

Specifications

• Functional principle: Photoelectric proximity sensor

• Detection method: Background suppression

• Dimensions (W x H x D): 7.7 mm x 21.8 mm x 13.5 mm

• Housing design: Rectangular

• Sensing range (max.): 1 mm to 66 mm

• Effective sensing range: 5 mm to 60 mm

• Background suppression from: 70 mm (typical)

• Type of light: Visible red light

• Light source: PinPoint LED

• Light spot size: Ø 4.5 mm at 40 mm

• Wavelength: 640 nm

• Adjustment: None

• Application: Small object detection

• Supply voltage: 10 V DC to 30 V DC

• Ripple: < 5 Vpp

• Current consumption: 20 mA

• Switching output: PNP

• Switching mode: Light switching

• Output current: ≤ 50 mA

• Response time: < 0.5 ms

• Switching frequency: 1,000 Hz

• Operating temperature: –25 °C to +50 °C

• Storage temperature: –40 °C to +75 °C

• UL File No.: NRKH.E181493
