Photoelectric Sensor – WT160-F420

(0 Reviews) Write a review

Miniature photoelectric sensor with background suppression and precise detection up to 60 mm — ideal for close-range object sensing in tight spaces.

Original price was: ₦189,000.00.Current price is: ₦184,757.96.

(Save 4,242.04)
In stock
Buy now
SKU: 1009SC13
Brand:

Description

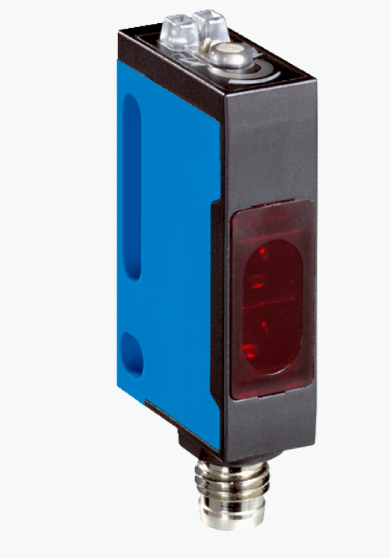

The WT160-F420 is a compact and reliable photoelectric proximity sensor with integrated background suppression, offering enhanced accuracy for detecting objects within a sensing range of 8 mm to 50 mm (max. 60 mm). Its space-saving rectangular design allows for seamless integration in machines and systems with limited mounting space.

This sensor emits a visible red LED light at a wavelength of 680 nm, ensuring clear and focused object detection even in variable lighting conditions. Engineered for applications requiring close-range detection with minimal interference from background surfaces, the WT160-F420 is suitable for use in packaging lines, electronics assembly, and automated inspection setups.

Specifications:
  • Model: WT160-F420

  • Sensor Type: Photoelectric proximity sensor

  • Detection Principle: Background suppression

  • Sensing Range: 8 mm to 50 mm (up to 60 mm max)

  • Light Source: LED

  • Type of Light: Visible red light

  • Wavelength: 680 nm

  • Housing Design: Rectangular

  • Light Emission Direction: Front face

  • Dimensions (W x H x D): 11 mm x 38 mm x 23 mm

Additional information

Weight 0.02 kg
Dimensions 11 × 38 × 23 mm
