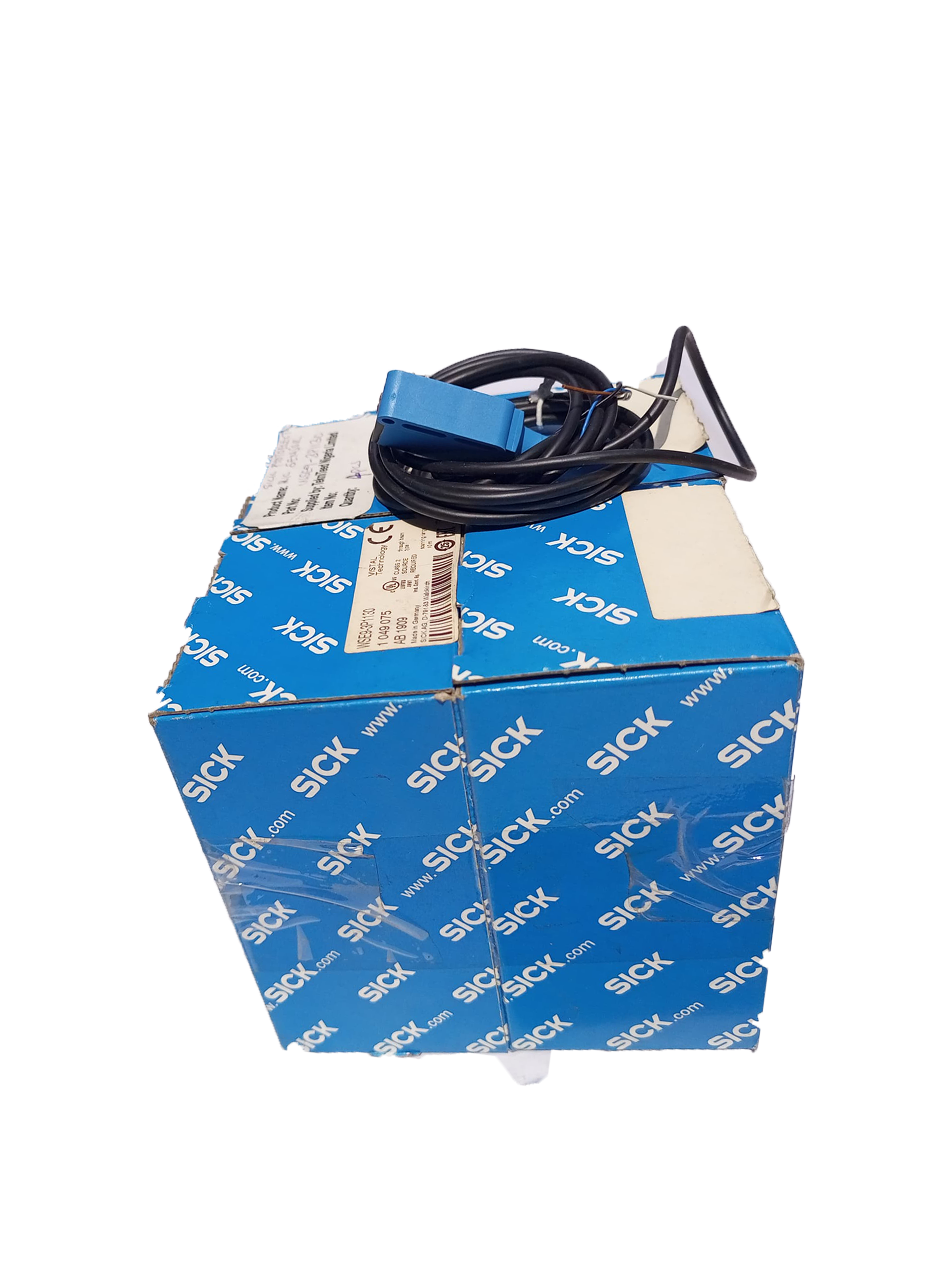

Photoelectric Sensor – WSE9-3P1130

The WSE9-3P1130 is a through-beam photoelectric sensor from the W9 series, offering reliable object detection over long distances. With a maximum sensing range of 10 meters (7 meters typical), this sensor uses a visible red light emitted by a PinPoint LED to create a precise detection beam. The sensor’s rectangular housing and M3 mounting hole make it ideal for a wide range of industrial and automation applications, ensuring accurate and efficient detection in various environments.

Built for durability and long-lasting performance, this sensor features a light spot size of 25 mm at 1 m for precise detection. It requires no adjustment, making it easy to install and use in applications like position sensing, counting, and sorting systems.

Specifications:

• Model: WSE9-3P1130 | W9

• Sensor Type: Through-beam photoelectric sensor

• Functional Principle: Through-beam

• Dimensions (W x H x D): 12.2 mm x 50 mm x 23.6 mm

• Mounting Hole: M3

• Sensing Range (typical): 0 m to 7 m

• Sensing Range (max): 0 m to 10 m

• Light Source: PinPoint LED

• Type of Light: Visible red light

• Wavelength: 650 nm

• Light Spot Size (at 1 m): Ø 25 mm
