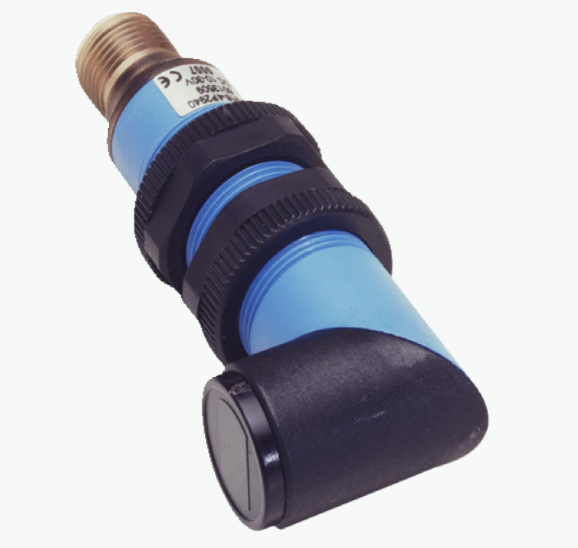

photoelectric Sensor – VL18-4P3940

The VL18-4P3940 is a radial-emitting photoelectric retro-reflective sensor from the VL18 series, designed for precise and reliable detection of objects up to 3.7 meters (typical range: 3 m) when used with a reflector. Its M18 cylindrical threaded housing and side-facing optical axis make it perfect for space-constrained or side-mount applications.

This sensor emits a visible red LED beam, making alignment straightforward. It also features a 270° potentiometer for quick sensitivity adjustment, ensuring flexible integration in varied environments.

Specifications

• Model: VL18-4P3940

• Sensor Type: Photoelectric retro-reflective sensor

• Emission Direction: Radial

• Housing Design: Cylindrical, threaded M18 x 1

• Housing Dimensions: 18 mm x 18 mm x 75 mm

• Sensing Range: 0.05 m to 3 m (max. 3.7 m)

• Type of Light: Visible red light

• Light Source: LED

• Light Spot Size: Ø 150 mm (at 3 m)

• Focus / Beam Angle: Approx. 2.8°

• Adjustment: Potentiometer, 270° (Sensitivity)
