Description

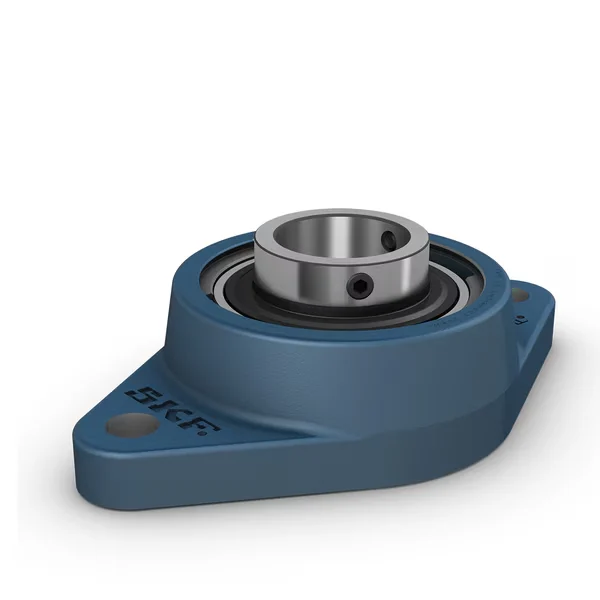

The FYTB 30 TF is a robust oval flanged ball bearing unit engineered for efficient performance in demanding applications. It incorporates an insert bearing with an extended inner ring and set screw locking, providing secure shaft fastening and reliable operation. The cast iron housing with a two-bolt oval flange design ensures straightforward installation on machine walls or frames, even in tight mounting spaces.
With seals and flingers on both sides, the unit is well protected against contaminants while retaining lubrication, which extends service life and reduces maintenance needs. It accommodates relatively heavy loads, operates effectively under high temperatures and speeds, and is suitable for both constant and alternating shaft rotation.
The FYTB 30 TF offers cost-effective reliability while minimizing downtime through its grease lubrication system with relubrication hole and grease fitting. Its rugged construction, ISO compliance, and proven durability make it an excellent choice for general machinery, processing equipment, and other industrial applications.
Specifications
| Attribute | Details |
|---|---|
| Part Number | FYTB 30 TF |
| Bearing Unit Type | Oval flanged ball bearing unit |
| Shaft Diameter | 30 mm |
| Housing Type | Flanged, oval |
| Number of Bolt Holes | 2 |
| Attachment Bolt Diameter | 10 mm |
| Centre Distance Between Bolt Holes | 116.5 mm |
| Housing Overall Width | 32.5 mm |
| Bearing Width (Total) | 38.1 mm |
| Unit Width (Total) | 42.2 mm |
| Fastening Bolt Hole Type | Plain |
| Retaining Feature, Inner Ring | Set screws |
| Bore Type | Cylindrical |
| Sealing, Bearing | Seal and flinger on both sides |
| Sealing Type | Contact, standard |
| Sealing, Unit | Optional end cover |
| Lubricant | Grease |
| Relubrication Hole | With |
| Grease Fitting | With |
| Material, Housing | Cast iron |
| Material, Bearing | Bearing steel |
| Coating | Without |
| Basic Dynamic Load Rating | 19.5 kN |
| Basic Static Load Rating | 11.2 kN |
| Limiting Speed | 6,300 r/min (with shaft tolerance h6) |
| Product Net Weight | 0.863 kg |
| eClass Code | 23-05-08-02 |
| UNSPSC Code | 31171536 |
