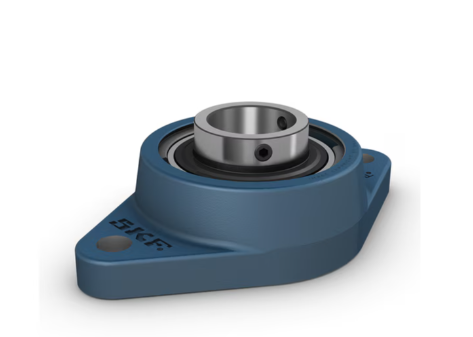

Oval Flanged Ball Bearing Unit – FYTB 50 TF

The SKF FYTB 50 TF is a robust oval flanged ball bearing unit designed for industrial applications requiring high durability, resistance to contamination, and efficient performance at high speeds. This ISO-compliant unit features an insert bearing with an extended inner ring and secure set screw locking, ensuring easy and reliable shaft mounting. The cast iron housing provides a strong, stable mounting structure that can be bolted to machine frames or walls. With pre-greased lubrication and a built-in relubrication hole, this bearing unit ensures long-lasting performance in demanding conditions.

Specification:

• Shaft Diameter: 50 mm

• Housing Type: Oval Flanged, 2 Bolt Holes

• Attachment Bolt Diameter: 16 mm

• Total Width: 60.6 mm

• Housing Overall Width: 43 mm

• Centre Distance Between Bolt Holes: 157 mm

• Bearing Width: 51.6 mm

• Load Rating: 35.1 kN (Dynamic), 23.2 kN (Static)

• Limiting Speed: 4,000 rpm

• Bore Type: Cylindrical

• Retaining Feature: Set Screws

• Material: Bearing Steel (Bearing), Cast Iron (Housing)

• Sealing: Contact Seal & Flinger on Both Sides

• Lubrication: Pre-Greased (Relubrication Hole & Grease Fitting Included)

• Weight: 2.06 kg
