Description

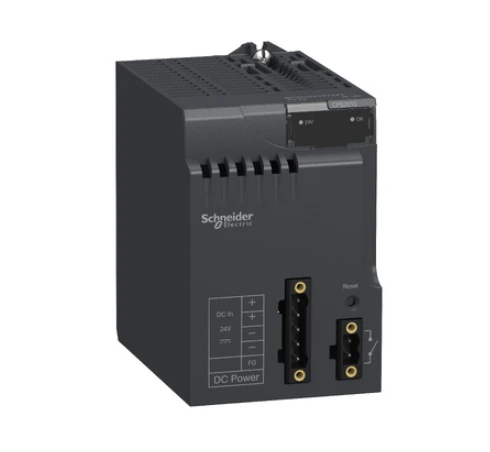

The Schneider Electric BMXCPS2010 is a high-quality power supply module from the Modicon X80 range, designed to deliver 24V DC isolated voltage with a total output power of 16.8W. Engineered for Modicon M580 and M340 PAC systems, this module ensures robust and consistent power delivery across medium to large-scale automation processes.
With a current rating of 2.5A at 3.3V DC and a maximum power dissipation of 8.5W, the BMXCPS2010 provides stable power to your automation hardware. The module features multiple connection interfaces including a 2-pin alarm relay connector and a 5-pin connector for line supply, PE, and sensor input.
Compact, rugged, and IP20 rated, it is built to withstand demanding industrial environments. Certified by CE, UL, CSA, RCM, and compliant with international standards, it guarantees both reliability and safety.
Specifications
| Attribute | Details |
|---|---|
| Product Name | Power Supply Module |
| Model / Reference | BMXCPS2010 |
| Series | Modicon X80 |
| Compatible Platforms | Modicon M580, M340 |
| Input Voltage | 24V DC (isolated) |
| Output Power | 16.8 W at 24V DC |
| Output Current | 2.5 A at 3.3V DC |
| Max Power Dissipation | 8.5 W |
| Connection Interfaces | 2-pin alarm relay, 5-pin supply/sensor/PE connectors |
| Mounting Type | Rack-mounted |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Standards | EN 61131-2, EN 61000-6-2/4, EN 61010-2-201 |
| Net Weight | 0.29 kg |
| Typical Applications | Medium to large process automation |
