Description

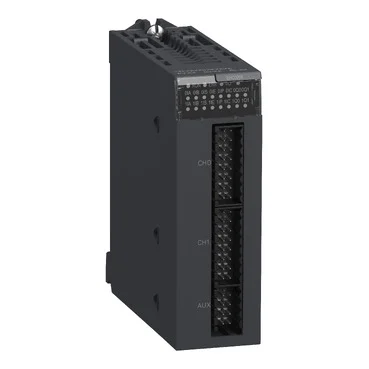

The BMXEHC0200 is a high-speed counter module designed for the Modicon M340 automation platform, forming part of the Modicon X80 range. Featuring 2 independent counting channels, it supports up to 6 digital inputs and 2 outputs, all operating at 24V DC. With a maximum counting frequency of 60kHz, it enables fast and accurate counting functions including down counting, width modulation, and modulo (loop) counting.
The module supports multiple input types such as 2-wire/3-wire proximity sensors, incremental encoders with push-pull outputs, and totem pole signals (10–30V). It is supplied with three connectors for separate sensor and auxiliary input wiring, supporting simplified installation and wiring flexibility.
With IP20 protection, a compact DIN rail-mountable design, and compliance with major industry standards (EN 61131-2, EN 61000-6-2/-4, EN 61010-2-201), this module is a reliable choice for medium to large automation systems requiring precise high-speed counting capabilities.
Specifications
| Attribute | Value |
|---|---|
| Range of Product | Modicon M340 Automation Platform |
| Product Type | High-Speed Counter Module |
| Part Number | BMXEHC0200 |
| Number of Channels | 2 |
| Maximum Counting Frequency | 60,000 Hz |
| Number of Inputs | 6 |
| Number of Outputs | 2 |
| Input Voltage | 24 V DC (Type 3) |
| Output Voltage | 24 V DC |
| Input Compatibility | 19.2–30 V 2-wire/3-wire proximity sensors, incremental encoders (push-pull), 10–30 V totem pole |
| Bus Current Consumption | 100 mA at 3.3 V DC |
| Rack Current Consumption | 40 mA at 24 V DC |
| Sensor Current Consumption | 80 mA at 24 V DC |
| Electrical Connections | – 10-pin auxiliary input connector – 2 × 16-pin sensor connectors |
| Mounting Type | DIN rail (rack-mounted) |
| IP Rating | IP20 |
| Net Weight | 0.112 kg |
| Package Dimensions (L×W×H) | 11.8 × 11.5 × 5.5 cm |
| Package Weight | 140 g |
