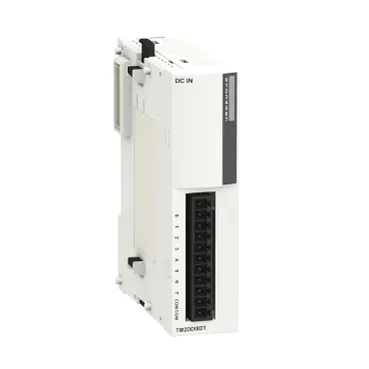

Modicon M238 Discrete Input Module – TM2DDI8DT
Modicon M238 discrete input module, 8 inputs, 24V DC, DIN rail mount, 1 removable screw terminal block.
Original price was: $53.92.$51.44Current price is: $51.44.
(Save $2.48)
In stock
Description
The TM2DDI8DT is an I/O expansion module designed for use with the Modicon M238 logic controller. It provides 8 discrete inputs operating at 24V DC, making it ideal for applications that require reliable digital signal acquisition.
This module features a removable screw terminal block for straightforward wiring and easy maintenance. Designed for mounting on a 35 mm symmetrical DIN rail, it integrates seamlessly into compact control panels. The built-in local display block allows for input status monitoring at a glance. With a low power consumption of 25 mA at 5 V DC (state 1 for all inputs), it ensures energy-efficient operation. The TM2DDI8DT is well-suited for a range of industrial automation applications requiring modular and scalable control solutions.
Specifications
| Attribute | Value |
|---|---|
| Range of Product | Modicon M238 Logic Controller |
| Product Type | I/O Expansion Module |
| Part Number | TM2DDI8DT |
| Discrete Input Type | DC |
| Discrete Input Voltage | 24 V |
| Number of Discrete Inputs | 8 |
| Current Consumption | 25 mA at 5 V DC (all inputs ON) |
| Electrical Connection | 1 removable screw terminal block |
| Local Signaling | 1 display block |
| Mounting Type | 35 mm symmetrical DIN rail |
| Width | 23.5 mm |
| Height | 90 mm |
| Depth | 84.6 mm |
| Net Weight | 0.1 kg |
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 84.6 × 23.5 × 90 mm |
