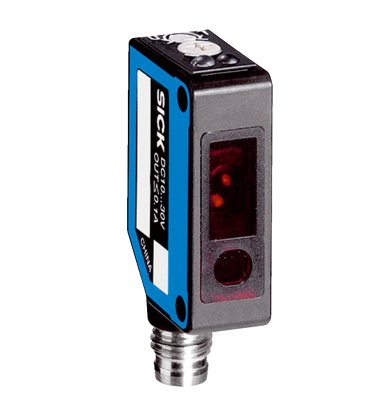

Miniature Photoelectric Sensor – WTB8-P2211

The WTB8-P2211 | W8 miniature photoelectric sensor offers high precision in a compact rectangular housing, making it an ideal solution for tight spaces and fine object detection. Utilizing background suppression technology, it ensures reliable detection of objects within 5 to 100 mm, regardless of background surfaces.

Equipped with a visible red LED light and an adjustable 4-turn potentiometer, it allows for precise sensitivity control. This sensor supports PNP output, light/dark switching, and operates with a rapid 1,000 Hz switching frequency, making it highly suitable for dynamic automation environments.

Designed for durability, the IP67-rated housing resists dust and water, while the supplied stainless steel mounting bracket makes installation easy and secure. Whether used in packaging, material handling, or assembly lines, the WTB8-P2211 delivers high performance in a small footprint.

Specifications

• Functional principle: Photoelectric proximity sensor

• Detection type: Background suppression

• Dimensions (W x H x D): 11 mm x 31 mm x 20 mm

• Housing design: Rectangular

• Sensing range (max.): 5 mm to 100 mm

• Effective sensing range: 20 mm to 100 mm

• Type of light: Visible red light

• Light source: LED

• Light spot size (at 100 mm): Ø 6 mm

• Wavelength: 650 nm

• Adjustment: Potentiometer (4 turns)

• Switching output: PNP

• Switching mode: Light/dark switching (selectable)

• Output current: ≤ 100 mA

• Signal voltage: Approx. VS – 1.8 V / 0 V

• Response time: ≤ 0.5 ms

• Switching frequency: 1,000 Hz

• Weight: 10 g

• Housing material: Plastic (ABS)

• Optics material: Plastic (PMMA)

• Enclosure rating: IP67
