Description

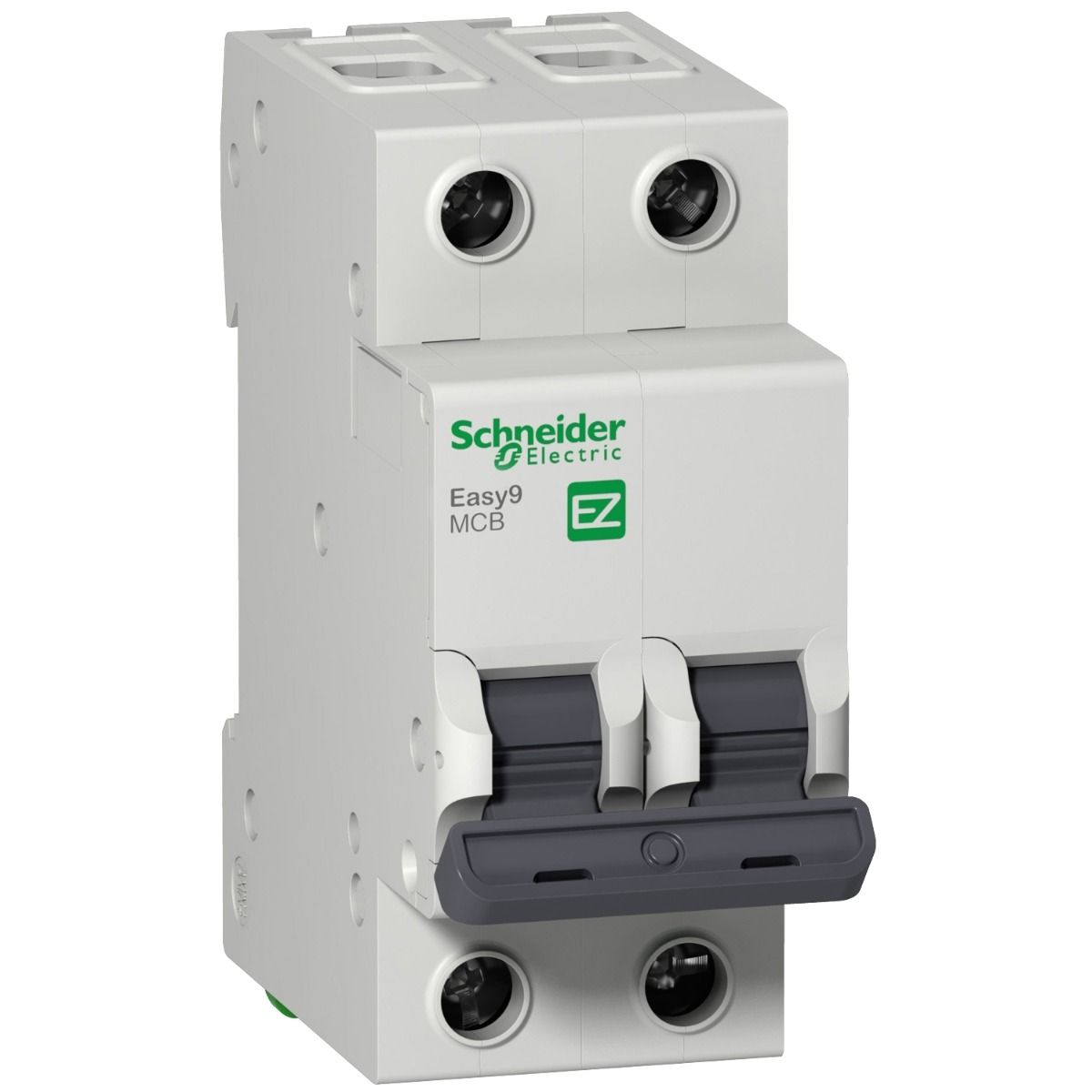

The Easy9 EZ9F56263 MCB by Schneider Electric provides efficient circuit protection with thermal-magnetic tripping technology, making it ideal for general loads with moderate inrush currents. It supports operational voltages of 220V AC and 400V AC, with a rated insulation voltage of 500V AC and an impulse withstand voltage of 4kV.
Built for durability, it offers 4,000 electrical cycles and 10,000 mechanical cycles, ensuring long-term reliability. The toggle switch design provides clear ON/OFF status indication, while the IP20 rating (IP40 when enclosed) enhances safety. With a clip-on DIN rail mounting system, installation is quick and seamless.
Ideal for residential, small commercial, and panel board applications, this MCB helps prevent electrical hazards and ensures uninterrupted power distribution.
Specification:
- Brand: Schneider Electric
- Series: Easy9
- Product Type: Miniature Circuit Breaker (MCB)
- Model Number: EZ9F56263
- Application: Residential & Small Commercial Buildings
- Rated Current (In): 63A
- Number of Poles: 2P (Two Protected Poles)
- Tripping Curve: C Curve (Trips at 5 to 10 times the rated current)
- Breaking Capacity: 10kA at 220V AC (IEC 60898-1) and 6kA at 400V AC (IEC 60898-1)
- Rated Operational Voltage (Ue): 220V AC / 400V AC (50/60Hz)
- Rated Insulation Voltage (Ui): 500V AC
- Impulse Withstand Voltage (Uimp): 4kV
- Magnetic Tripping Limit: 5 to 10 × In
