Description

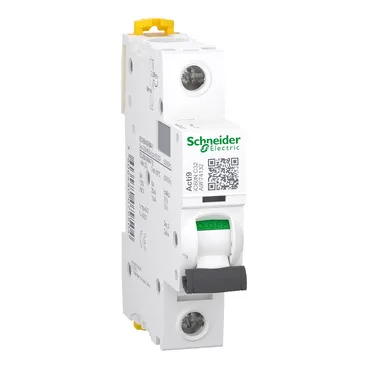

The Acti9 iC60N miniature circuit breaker is engineered for dependable circuit protection in both residential and industrial electrical installations. With a single protected pole rated at 32A and a C curve tripping mechanism, it efficiently safeguards circuits from overloads and short circuits. Its robust breaking capacity—10kA at 220–240V AC (IEC 60947-2) and 6kA at 230V AC (IEC 60898-1)—meets stringent safety standards.
The device features Schneider Electric’s VisiTrip indicator for quick fault identification and VisiSafe technology to ensure contact separation for maintenance safety. Its compact 18mm width allows easy DIN rail mounting, while the IP20/IP40 protection rating ensures durability.
Built for endurance, it offers up to 10,000 electrical and 20,000 mechanical cycles, with an operating temperature range from -35°C to 70°C.
Specifications
| Attribute | Value |
|---|---|
| Part Number | A9F74132 |
| Device Application | Distribution |
| Range | Acti9 |
| Product Name | Acti9 iC60 |
| Product or Component Type | Miniature circuit-breaker |
| Device Short Name | IC60N |
| Poles Description | 1P |
| Number of Protected Poles | 1 |
| Rated Current (In) | 32 A |
| Network Type | AC, DC |
| Trip Unit Technology | Thermal-magnetic |
| Height | 85 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| Net Weight | 0.215 kg |
| Colour | White |
| Mounting | DIN rail |
| Breaking Capacity (IEC 60947-2) | 10 kA |
| Breaking Capacity (IEC 60898-1) | 6 kA |
| Protection Degree | IP20, IP40 (in enclosure) |
| Electrical Endurance | 10,000 cycles |
| Mechanical Endurance | 20,000 cycles |
| Operating Temperature | -35°C to 70°C |
| Storage Temperature | -40°C to 85°C |
