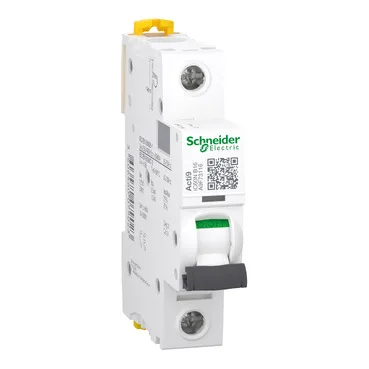

Miniature circuit-breaker – A9F73116
The Acti9 iC60N A9F73116 is a 1P miniature circuit breaker rated at 16 A with a B curve tripping characteristic. Designed for reliable short-circuit and overload protection, it complies with both IEC 60898-1 and IEC 60947-2 standards, making it suitable for residential and industrial applications.
Original price was: $7.71.$7.36Current price is: $7.36.
(Save $0.35)
In stock
Description
The Acti9 iC60N A9F73116 miniature circuit breaker provides efficient protection against overload and short-circuit faults in AC and DC installations. With a B curve tripping mechanism, it is ideal for protecting circuits with low inrush currents such as lighting or socket circuits.
Its breaking capacity reaches 10 kA under IEC 60947-2 and 6 kA under IEC 60898-1, ensuring robust fault management. Features like the VisiTrip indicator allow quick fault location, while the VisiSafe indicator confirms safe disconnection for maintenance.
The thermal-magnetic trip unit ensures consistent performance, and its durable design offers up to 20,000 mechanical cycles. Compact at 18 mm width, it easily mounts on DIN rails and offers IP20/IP40 protection, operating reliably from –35 °C to 70 °C in demanding environments.
Specification
| Attribute | Value |
|---|---|
| Part Number | A9F73116 |
| Range | Acti9 |
| Product Name | Acti9 iC60 |
| Product or Component Type | Miniature circuit-breaker |
| Device Short Name | IC60N |
| Device Application | Distribution |
| Poles Description | 1P |
| Number of Protected Poles | 1 |
| Rated Current [In] | 16 A |
| Network Type | AC, DC |
| Trip Unit Technology | Thermal-magnetic |
| Curve Code | B |
| Rated Short-circuit Capacity | 10 kA (IEC 60947-2), 6 kA (IEC 60898-1) |
| Height | 85 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| Net Weight | 0.215 kg |
| Colour | White |
| Mounting | DIN rail |
| Degree of Protection | IP20, IP40 in enclosure |
| Operating Temperature | –35 °C to 70 °C |
| Storage Temperature | –40 °C to 85 °C |
Additional information
| Weight | 0.215 kg |
|---|---|
| Dimensions | 78.5 × 18 × 85 mm |
