Description

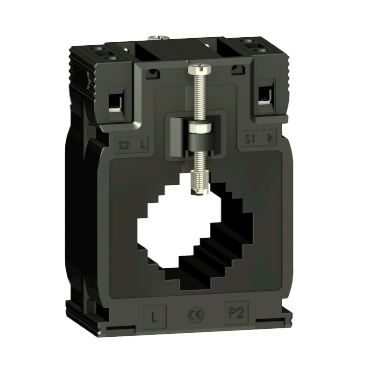

The METSECT5MA025 is a tropicalised current transformer designed for precise measurement in busbar and cable applications. It has a primary rated current of 250 A and a secondary current of 5 A. The transformer allows a maximum cable outer diameter of 27 mm and supports double bar outputs: 32.5 × 10.5 mm or 25.5 × 15.5 mm. Burden and accuracy classes are 0.5 at 6 VA and 1 at 8 VA, ensuring reliable performance under standard industrial conditions.
| Specification | Details |
|---|---|
| Range | PowerLogic |
| Product or Component Type | Current transformer |
| Product Name | CT |
| Primary Rated Current [In] | 250 A |
| Secondary Current | 5 A |
| Cable Compatibility | Max diameter 27 mm |
| Bar Compatibility | 32.5 × 10.5 mm, 25.5 × 15.5 mm |
| Accuracy Class | Class 0.5 at 6 VA Class 1 at 8 VA |
| Outer Dimensions (W × H × D) | 56 × 80 × 63 mm (total depth) |
| Frame Depth | 43 mm |
| Net Weight | 0.298 kg |
