Description

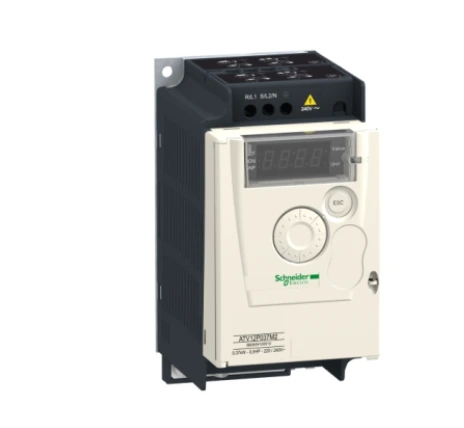

The Schneider Electric Altivar Machine ATV12 (ATV12P037M3) is a high-performance, compact variable speed drive (VSD) for controlling three-phase asynchronous motors. Operating at 200–240V AC, this drive supports motors up to 0.37kW (0.55HP), making it ideal for a wide range of simple machine and HVAC applications.
This model is mounted on a base plate, allowing for flexible installation—either standalone or in side-by-side multi-drive configurations. It features advanced PID control, catch on the fly, and simple motor control setup, offering intuitive operation with minimal wiring.
The ATV12P037M3 is Modbus-ready out of the box, enabling easy integration into automation environments. Compatible with SoMove software, it allows configuration backup and transfer, significantly reducing setup and maintenance time.
Designed for machines such as conveyors, pumps, fans, extractors, barriers, and treadmills, the drive delivers robust performance and energy efficiency, while conforming to IEC, UL, and other international standards.
Specifications
| Specification | Details |
|---|---|
| Model | ATV12P037M3 |
| Power Rating | 0.37 kW / 0.55 HP |
| Input Voltage | 200–240 V AC (Three Phase) |
| Motor Compatibility | 3-Phase Asynchronous Motors |
| Mounting | Base Plate |
| Cooling Type | Natural Cooling |
| Communication Protocol | Modbus (Built-in) |
| Control Features | Advanced PID, Catch on the Fly |
| Application Areas | Conveyors, Pumps, Fans, HVAC, Extractors, etc. |
| Configuration Software | SoMove Compatible |
| Installation Flexibility | Standalone or Side-by-Side Multi-Drive Config |
| Standards & Compliance | IEC, UL, and other international standards |
| Width | 72 mm |
| Height | 143 mm |
| Depth | 102.2 mm |
| Net Weight | 0.7 kg |
