Description

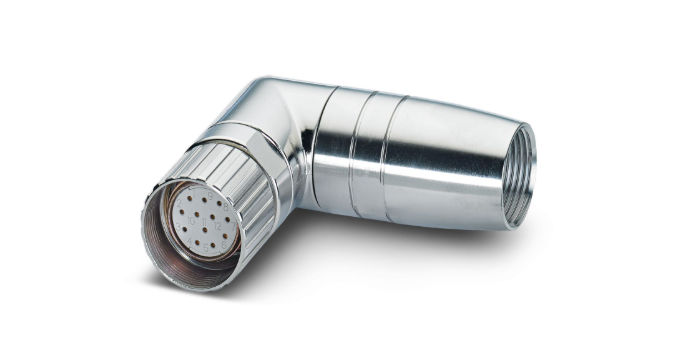

The UC-17S1N12NNDU (Article No. 1617247) is an M23 angled cable connector from the UC series, designed for reliable industrial cable connections where space constraints require an angled configuration. It features 17 socket contacts with solder cup termination, ensuring secure and stable electrical connections in demanding environments.
The connector supports a wide cable diameter range from 2 mm to 14.5 mm and includes shielding to protect against electromagnetic interference. A screw locking mechanism provides robust mechanical retention, making it suitable for industrial automation, machinery, and control applications.
Specifications
| Specification | Details |
|---|---|
| Product Name | UC-17S1N12NNDU |
| Article Number | 1617247 |
| Product Type | Cable Connector |
| Series | UC |
| Connector Size | M23 |
| Connector Orientation | Angled |
| Number of Positions | 17 |
| Contact Type | Socket |
| Contact Termination | Solder Cup |
| Shielded | Yes |
| Locking Mechanism | Screw Locking |
| Coding | N |
| Direction of Rotation | Standard |
| Cable Diameter Range | 2 mm – 14.5 mm |
| Application | Industrial automation, machinery, control systems |
| Product Lifecycle Status | Discontinued (not for new projects) |
| Weight | 190.75 g |
