Description

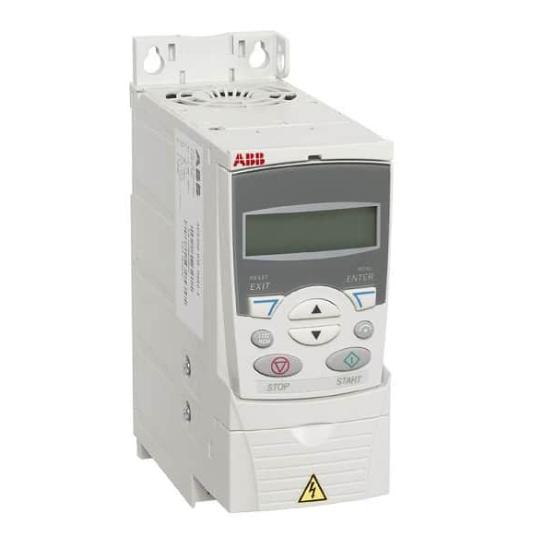

The ABB ACS355-03E-05A6-4 is a robust and compact low-voltage AC machinery drive built to handle the demanding needs of modern industrial applications. With a power rating of 2.2 kW and output current of 5.6 A, it provides reliable performance in food and beverage, printing, textile, woodworking, material handling, and other industrial sectors.
Designed with user-friendly setup and space-saving dimensions, this drive includes features such as Safe Torque Off (STO), sequence programming, and compatibility with induction and permanent magnet motors. Its versatile control options and built-in safety features eliminate the need for external electronics, reducing installation time and cost.
The ACS355-03E-05A6-4 ensures precise motor control, energy efficiency, and dependable operation, making it an ideal choice for OEMs and system integrators.
Specifications
| Attribute | Details |
|---|---|
| Manufacturer | ABB |
| Series | ACS355 |
| Model Number | ACS355-03E-05A6-4 |
| Product ID | 3AUA0000058187 |
| EAN | 6438177223627 |
| Power Rating (Pn) | 2.2 kW |
| Output Current | 5.6 A |
| Input Voltage | 3-phase, 400 V |
| Application Areas | Machinery, Material Handling, Textile, Printing |
| Control Type | Scalar (V/f), Sensorless Vector, PM motor ready |
| Built-in Features | Safe Torque Off, Sequence Programming |
| Mounting Type | Panel-mounted |
| Enclosure | IP20 (Standard) |
| Dimensions (H × W × D) | 239 × 70 × 161 mm |
| Net Weight | 1.8 kg |
| Ambient Temperature Range | Typically -10 °C to +50 °C |
| Compliance | CE, RoHS, IEC |
