Description

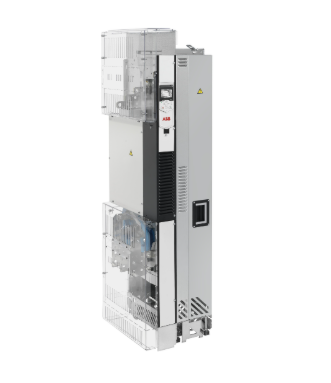

The ABB ACS880-04-505A-3 is a powerful low-voltage AC industrial single drive module rated at 250 kW, 505 A, and 400 V, designed for a broad range of heavy-duty industrial applications. Engineered for demanding sectors like oil & gas, mining, metals, cement, pulp & paper, marine, and more, this drive ensures precision control and high reliability across your critical processes.
Built with an integrated choke for harmonic filtering, and options for brake chopper, EMC filter, and protocol adapters, the ACS880-04 provides flexibility and reduced system complexity. Its compact, modular IP20-protected design allows versatile mounting—from bookshelf to horizontal layout—making it ideal for space-constrained installations.
Equipped with advanced I/O, communication capabilities, and functional safety options, the ACS880-04-505A-3 is ready to streamline engineering, simplify commissioning, and deliver high-performance motor control across all environments.
Specifications
| Attribute | Value |
|---|---|
| Product Name | ACS880-04-505A-3 |
| Product ID | 3AUA0000139052 |
| Manufacturer | ABB |
| Drive Type | LV AC Industrial Single Drive Module |
| Rated Power (Pn) | 250 kW |
| Rated Current (In) | 505 A |
| Input Voltage | 400 V (3-phase) |
| Output Frequency | 0–500 Hz |
| Application Areas | Oil & Gas, Mining, Metals, Cement, Marine, etc. |
| Harmonic Mitigation | Built-in choke |
| Cooling Method | Air-cooled |
| Protection Class | IP20 |
| Brake Chopper | Optional |
| EMC Filter | Optional |
| Communication | Modular adapter options (e.g., Modbus, Profibus) |
| Functional Safety | Expandable |
| Mounting Options | Bookshelf, flat, or horizontal |
| Net Weight | 165 kg |
| Dimensions (W x H x D) | 350 x 1541 x 506 mm |
