Description

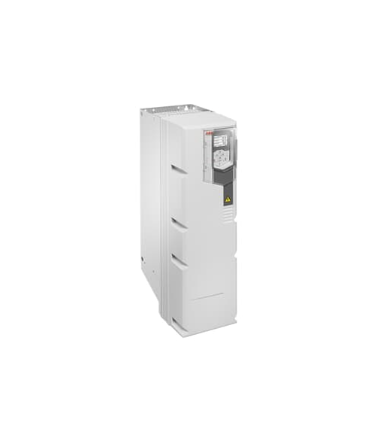

The ABB ACS580-01-106A-4+B056 is a robust, wall-mounted low-voltage AC drive engineered for high-performance motor control in demanding industrial environments. Rated at 55 kW and 106 A, this drive is ideally suited for managing variable and constant torque applications such as fans, pumps, compressors, extruders, mixers, and more.
This variant features an IP55 enclosure, offering enhanced protection against dust and water, making it suitable for rugged and outdoor environments. All essential features—including built-in PID controllers, energy optimization, and intuitive setup assistants—are integrated, minimizing the need for external components and reducing installation time.
With a compact footprint, comprehensive diagnostics, and built-in communication options, the ACS580-01-106A-4+B056 supports seamless integration into modern automation systems. It helps improve operational efficiency and extend equipment lifespan through intelligent motor control.
Specifications
| Attribute | Details |
|---|---|
| Manufacturer | ABB |
| Series | ACS580 |
| Model Number | ACS580-01-106A-4+B056 |
| Product ID | 3AUA0000083578 |
| EAN | 6438177306092 |
| Power Rating (Pn) | 55 kW |
| Output Current | 106 A |
| Input Voltage | 3-phase, 400 V |
| Output Frequency Range | 0…500 Hz |
| Application | Pumps, Fans, Compressors, Conveyors, etc. |
| Enclosure Protection | IP55 (Dust-tight and water-jet resistant) |
| Mounting Type | Wall-mounted |
| Control Features | Built-in PID, energy optimizer |
| User Interface | Assistant panel with quick setup menus |
| Communication Protocols | Modbus RTU (expandable to BACnet, Profibus) |
| Product Net Dimensions | 1023 × 203 × 320 mm (H × W × D) |
| Product Net Weight | 29 kg |
| Ambient Temperature Range | Typically -10 °C to +50 °C (derating applies) |
| Compliance | RoHS, CE, IEC |
