Description

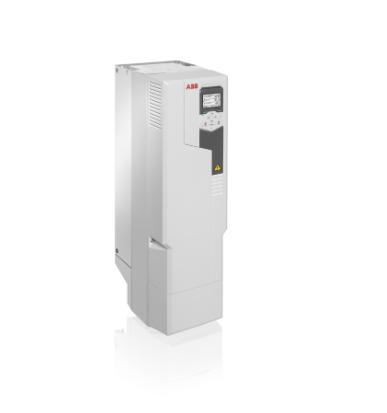

The ABB ACS580-01-106A-4 is a high-performance, wall-mounted low-voltage AC drive engineered for general-purpose industrial applications. Rated at 55 kW and 106 A, this drive offers intelligent motor control for compressors, pumps, fans, extruders, conveyors, mixers, and more. It serves a broad range of light industries, including food and beverage, plastics, textiles, material handling, and agriculture.
With all essential features built-in as standard, including intuitive assistants and menus, the ACS580-01 series ensures quick setup and commissioning. The drive simplifies operations, reduces the need for extra hardware, and enhances energy efficiency. Designed to be rugged and reliable, the ACS580 supports both variable and constant torque loads and comes in an IP21 enclosure by default, with IP55 and flange-mounted versions available for harsher environments.
This model provides exceptional value and control performance, making it the ideal choice for efficient and dependable plant operations.
Specifications
| Attribute | Details |
|---|---|
| Manufacturer | ABB |
| Series | ACS580 |
| Model Number | ACS580-01-106A-4 |
| Product ID | 3AUA0000080503 |
| EAN | 6438177305590 |
| Power Rating (Pn) | 55 kW |
| Output Current | 106 A |
| Input Voltage | 3-phase, 400 V |
| Frequency Range | 0…500 Hz |
| Application | Compressors, Pumps, Fans, Conveyors, etc. |
| Control Features | Built-in assistants, PID, energy optimizer |
| Enclosure Protection | IP21 (default), IP55 (optional) |
| Mounting Type | Wall-mounted |
| Product Net Dimensions | 732 × 203 × 295 mm (H × W × D) |
| Product Net Weight | 28.3 kg |
| Ambient Temperature | Typically -10 °C to +50 °C (see datasheet) |
| Compliance | RoHS, CE, IEC |
| Communication Protocols | Built-in Modbus RTU (others via options) |
| Energy Efficiency | High, with energy optimization features |
