Description

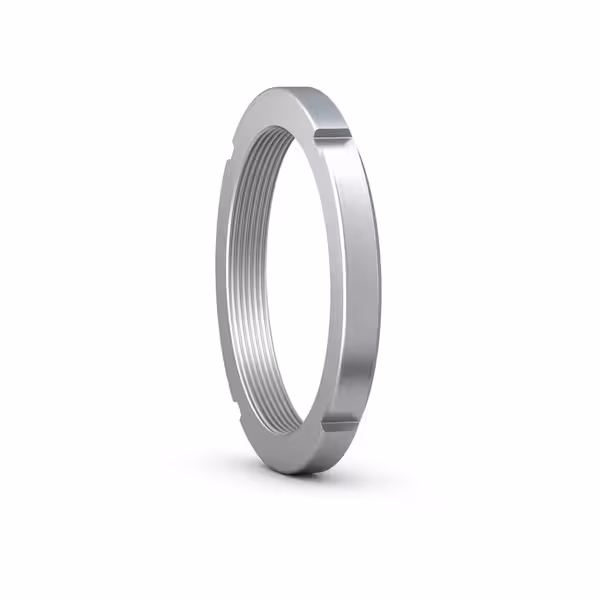

N series lock nuts are precision components that ensure reliable axial location of bearings on a shaft. The N 05 lock nut features inch threading and four spanner slots, allowing for straightforward installation and removal.
To maintain secure fastening, the nut must be used with a lock washer or locking plate, which prevents accidental loosening during operation. A keyway in the shaft or adapter sleeve is required for proper functionality.
Durable and reusable when paired with a new locking device, the N 05 lock nut is a cost-effective solution for mounting bearings. While not intended for hydraulic mounting, it is compatible with the HN 5-6 spanner for safe and efficient handling.
Specifications
| Feature | Details |
|---|---|
| Part number | N 05 |
| Weight | 0.048 kg |
| Type | Lock nut (inch thread) |
| Thread designation | 0.969-32 |
| Bore diameter | 24.613 mm |
| Outside diameter | 39.827 mm |
| Width | 10.566 mm |
| Locking device | Lock washer |
| Hydraulic mounting | No |
| Associated mounting tool | HN 5-6 |
| Reusable | Yes (with new locking device) |
| Carbon footprint (indicative) | N/A |
| eClass code | 23-11-07-05 |
| UNSPSC code | 31163218 |
