Description

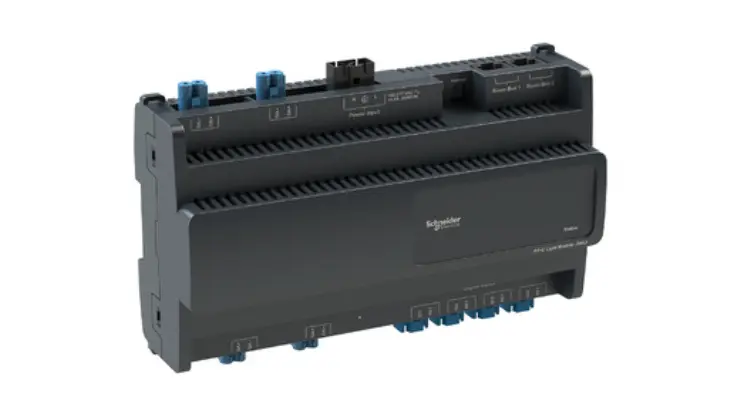

The SpaceLogic RP-C-EXT-DALI Light Module from Schneider Electric is a high-performance extension designed for use with RP room controllers in the EcoStruxure Building Operation system. This module enables precise control of DALI-compatible lighting, offering connectivity for up to four lamps and four dry contact inputs. Operating across a wide voltage range of 100–277 V AC, it provides reliable performance in various building environments. The RP-C-EXT-DALI module simplifies lighting management, enhances energy efficiency, and ensures smooth communication with DALI control gear for optimal building automation performance.
Specification
| Specification | Details |
|---|---|
| Range | EcoStruxure Building Operation |
| Product Name | SmartX Room Purpose Controller |
| Device Short Name | RP-C-EXT-DALI-1 |
| Brand | Schneider Electric |
| Product Type | Bus extension module |
| Application | Lighting control (DALI) |
| Rated Supply Voltage [Us] | 100–277 V AC |
| Discrete Inputs | 4 dry contact inputs |
| Discrete Outputs | 4 lamp outputs |
| Output Voltage | 100–277 V AC (for power supply output) |
| Output Current | 64 mA per lamp (DA+, DA–) |
| Mounting | DIN rail or panel mount (depending on system setup) |
| Package Type | PCE |
| Units per Package | 1 |
| Package Dimensions (H × W × L) | 21.4 × 13.6 × 6.8 cm |
| Package Weight | 400 g |
