Description

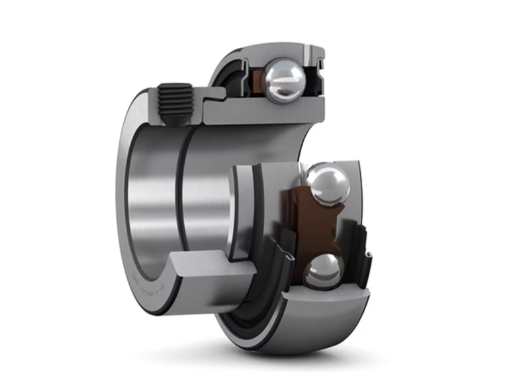

The SKF YET 210 insert bearing is a high-performance solution for applications requiring constant rotation. It features an eccentric locking collar for quick and secure shaft mounting, ensuring reliability in demanding environments. The narrow inner ring extends on one side, while the spherical outer ring allows for slight misalignment, reducing operational stress. Designed with integrated contact seals on both sides, this bearing effectively retains lubrication and blocks contaminants, enhancing longevity and performance. Made from premium bearing steel and pre-lubricated with grease, the YET 210 is ideal for industrial and agricultural applications, offering long service life with minimal maintenance.
Specification:
-
Shaft Diameter: 50 mm
-
Bore Diameter: 50 mm
-
Outside Diameter: 90 mm
-
Total Width: 43.7 mm
-
Inner Ring Width: 30.2 mm
-
Outer Ring Width: 22 mm
-
Load Rating: 35.1 kN (Dynamic), 23.2 kN (Static)
-
Limiting Speed: 4,000 rpm
-
Bore Type: Cylindrical
-
Retaining Feature: Eccentric Collar
-
Outer Ring Type: Spherical
-
Inner Ring Extension: One Side
-
Cage Material: Non-Metallic
-
Sealing: Contact Seal on Both Sides
-
Lubrication: Grease (Relubrication Feature Available)
-
Material: Bearing Steel
-
Weight: 0.709 kg
-
UNSPSC Code: 31171536
