Insert Bearing – YET 205

(0 Reviews) Write a review

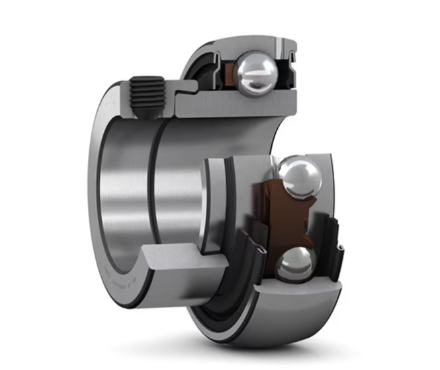

SKF YET 205 Insert Bearing – 25mm Shaft, Eccentric Locking Collar, Narrow Inner Ring. Designed for single-direction rotation with quick and secure mounting.

Original price was: 15,27 €.Current price is: 14,66 €.

(Save 0,61 )
In stock
Buy now

Description

The SKF YET 205 insert bearing is an excellent choice for applications requiring consistent single-direction rotation. Featuring an eccentric locking collar, it ensures quick and reliable shaft mounting with minimal effort. Its narrow inner ring is extended on one side, while the spherical outer ring allows for slight misalignments, improving operational stability. The bearing is equipped with contact seals on both sides to protect against contaminants and is pre-lubricated with grease for extended service life. Constructed from durable bearing steel, the YET 205 delivers high performance with reduced noise and vibration, making it ideal for industrial and mechanical applications.

Specification:
  • Shaft Diameter: 25 mm

  • Bore Diameter: 25 mm

  • Outside Diameter: 52 mm

  • Total Width: 31 mm

  • Inner Ring Width: 21.5 mm

  • Outer Ring Width: 15 mm

  • Load Rating: 14 kN (Dynamic), 7.8 kN (Static)

  • Limiting Speed: 7,000 rpm

  • Bore Type: Cylindrical

  • Retaining Feature: Eccentric Collar

  • Outer Ring Type: Spherical

  • Inner Ring Extension: One Side

  • Cage Material: Non-Metallic

  • Sealing: Contact Seal on Both Sides

  • Lubrication: Grease (Relubrication Feature Available)

  • Material: Bearing Steel

  • Weight: 0.181 kg

  • UNSPSC Code: 31171536

Additional information

Weight 0,181 kg
