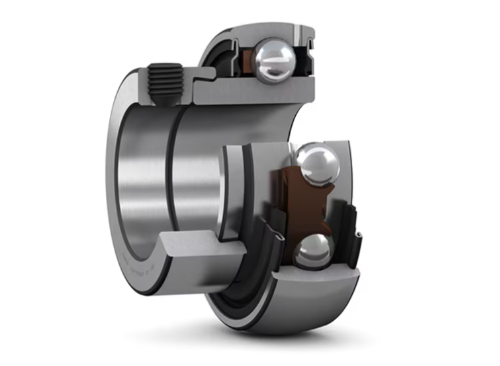

Insert Bearing – YET 203

The SKF YET 203 insert bearing is engineered for applications requiring consistent single-direction rotation. It features an eccentric locking collar for quick and secure shaft mounting, ensuring stability and reliability. The narrow inner ring extends on one side, while the spherical outer ring allows for slight misalignments, enhancing operational efficiency. Equipped with contact seals on both sides, the bearing protects against contaminants and is pre-lubricated with grease for extended service life. Manufactured from durable bearing steel, the YET 203 delivers superior performance with reduced noise and vibration, making it ideal for industrial and mechanical applications.

Specification:

• Shaft Diameter: 17 mm

• Bore Diameter: 17 mm

• Outside Diameter: 40 mm

• Total Width: 28.6 mm

• Inner Ring Width: 19.1 mm

• Outer Ring Width: 12 mm

• Load Rating: 9.56 kN (Dynamic), 4.75 kN (Static)

• Limiting Speed: 9,500 rpm

• Bore Type: Cylindrical

• Retaining Feature: Eccentric Collar

• Outer Ring Type: Spherical

• Inner Ring Extension: One Side

• Cage Material: Non-Metallic

• Sealing: Contact Seal on Both Sides

• Lubrication: Grease (Relubrication Feature Available)

• Material: Bearing Steel

• Weight: 0.101 kg

• UNSPSC Code: 31171536
