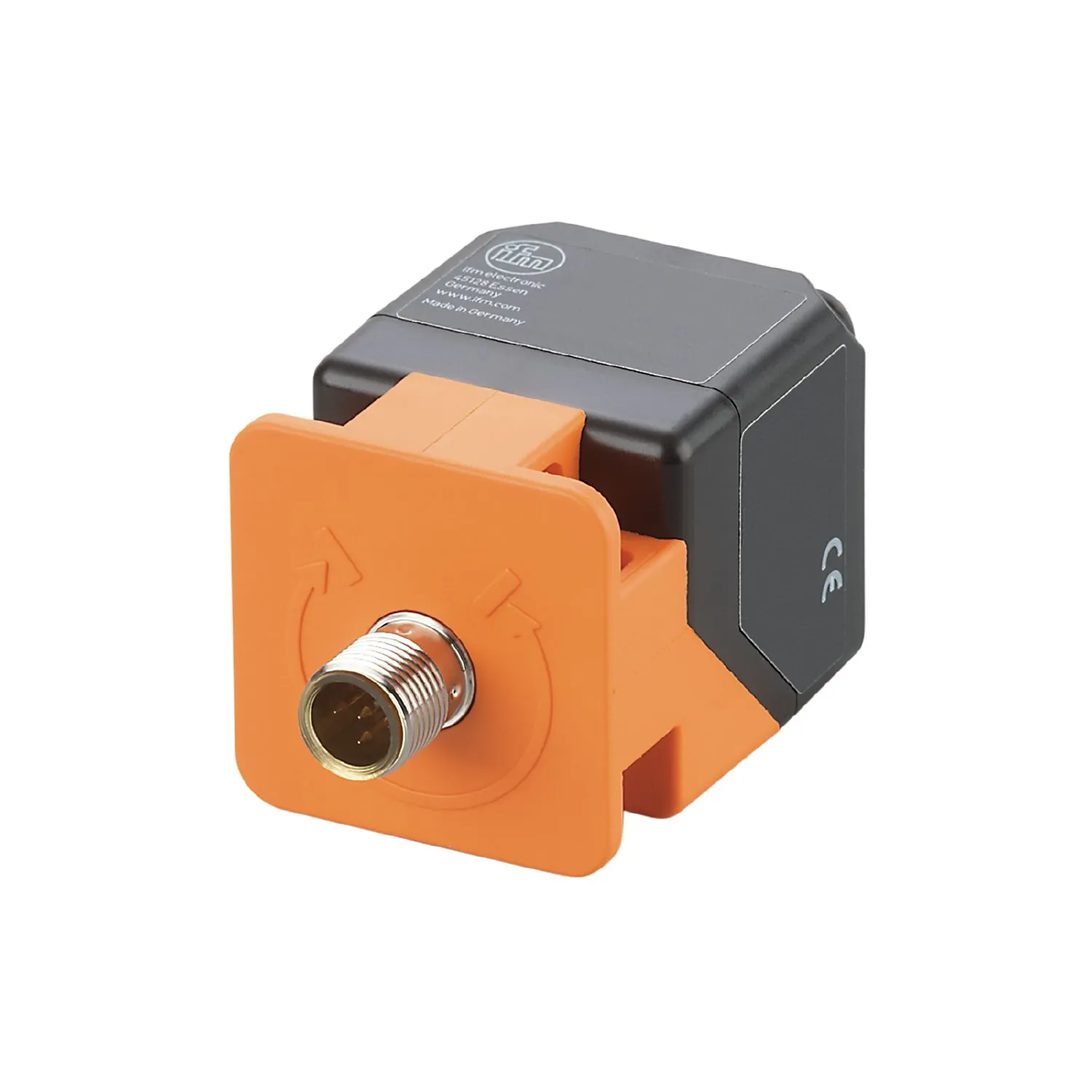

Inductive Sensor – IM5123

(0 Reviews) Write a review

High-performance inductive sensor with 20 mm sensing range, complementary PNP outputs, and robust housing for demanding industrial environments.

Original price was: $64.97.Current price is: $61.58.

(Save $3.39)
In stock
Buy now

Description

The Inductive Sensor IM5123 (IMC4020BCPKG/US-100-DPA) is engineered for reliable performance in conveying and harsh industrial applications. Its long sensing range of 20 mm, combined with a robust rectangular housing, ensures durability and accuracy even under tough conditions. The sensor offers complementary PNP outputs, providing versatile integration options. With five selectable sensing face positions and clearly visible corner LEDs, it guarantees easy installation, clear status indication, and maximum flexibility in any mounted position. Enhanced with short-circuit, overload, and reverse polarity protection, this sensor delivers dependable operation and long service life in demanding factory automation tasks.

Specifications

Category Details
Product Name Inductive Sensor
Model IM5123 (IMC4020BCPKG/US-100-DPA)
Housing Type Rectangular
Dimensions 40 x 40 x 54 mm
Weight 0.1465 kg
Sensing Range 20 mm
Selectable Sensing Face 5 positions
LED Display Corner LEDs visible in any mounted position
Electrical Design PNP
Output Function Complementary
Operating Voltage 10…36 V DC
Current Consumption < 25 mA
Protection Class II
Reverse Polarity Protection Yes
Max. Voltage Drop 2.5 V (DC switching output)
Max. Leakage Current 0.1 mA
Permanent Current Rating 200 mA (DC switching output)
Switching Frequency 100 Hz (DC)
Short-Circuit Protection Yes (pulsed)
Overload Protection Yes

Additional information

Weight 0.1465 kg
Dimensions 40 × 40 × 4 mm
