Description

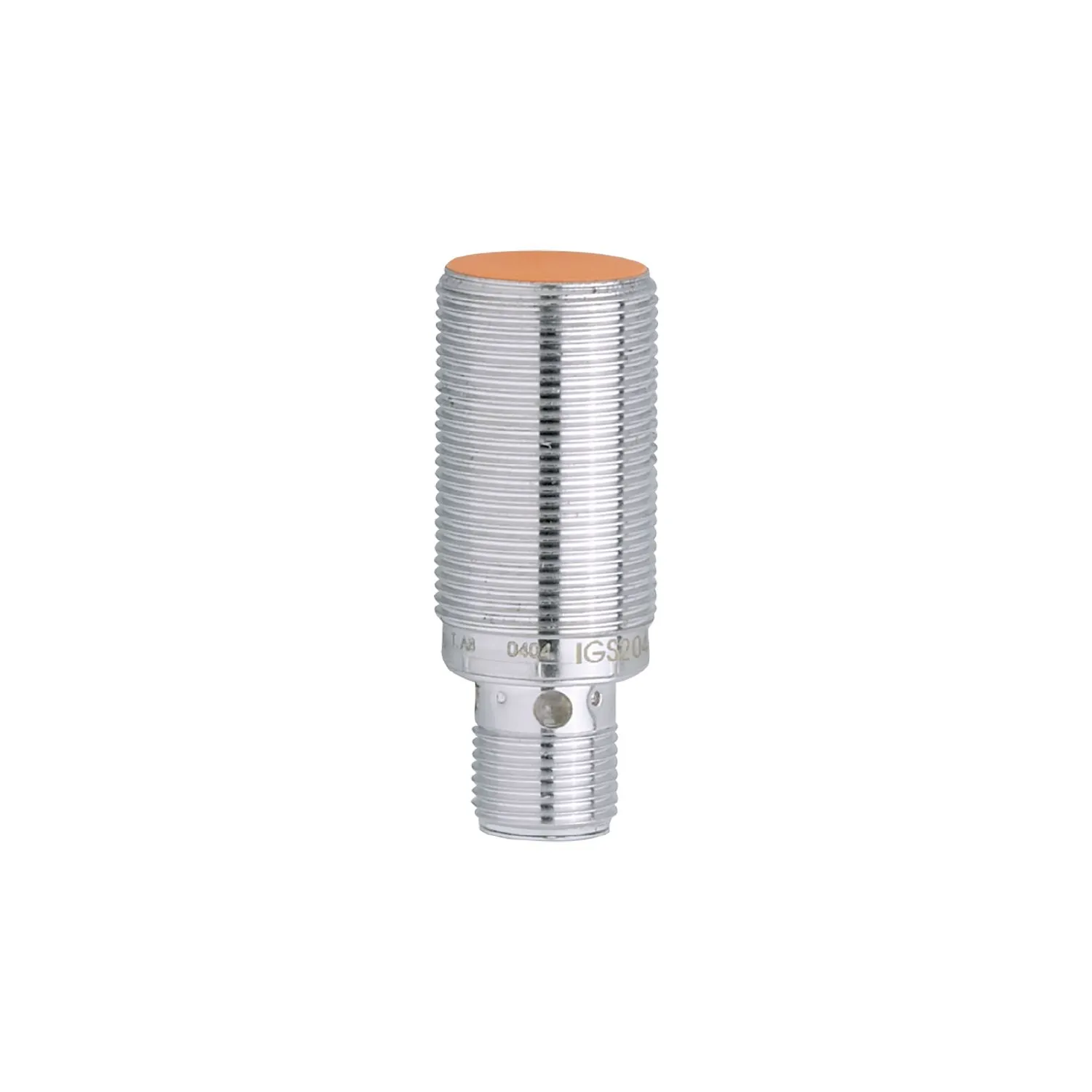

The Inductive Sensor IGS206 (IGB3008BAPKG/US-104) is engineered for reliable detection in harsh industrial environments. Its robust metal housing ensures durability, while the clearly visible switching status indicator provides quick operational feedback. With an 8 mm sensing range, this sensor delivers high uptime and efficiency in automation processes. The normally closed PNP output, gold-plated contacts, and increased sensing range make it a dependable choice for demanding applications. Additional features include reverse polarity protection, low power consumption, and a permanently legible laser type label for long-term identification.
Specifications
| Category | Details |
|---|---|
| Product Name | Inductive Sensor |
| Model | IGS206 (IGB3008BAPKG/US-104) |
| Housing Type | Threaded type |
| Dimensions | M18 x 1 / L = 45 mm |
| Weight | 0.0423 kg |
| Sensing Range | 8 mm |
| Special Features | Gold-plated contacts; Increased sensing range |
| Electrical Design | PNP |
| Output Function | Normally closed |
| Operating Voltage | 10…30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | II |
| Reverse Polarity Protection | Yes |
| Max. Voltage Drop | 2.5 V (DC switching output) |
