Description

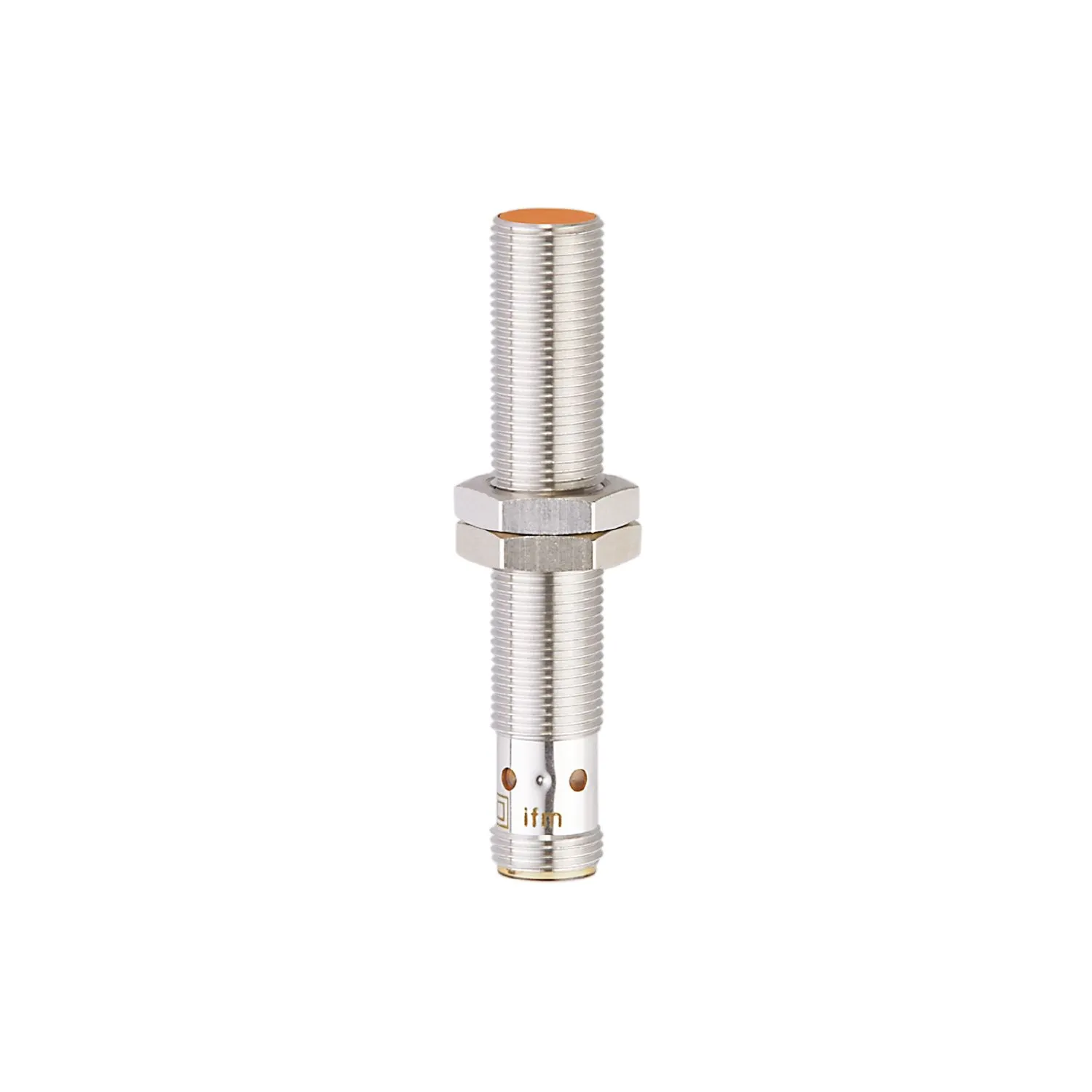

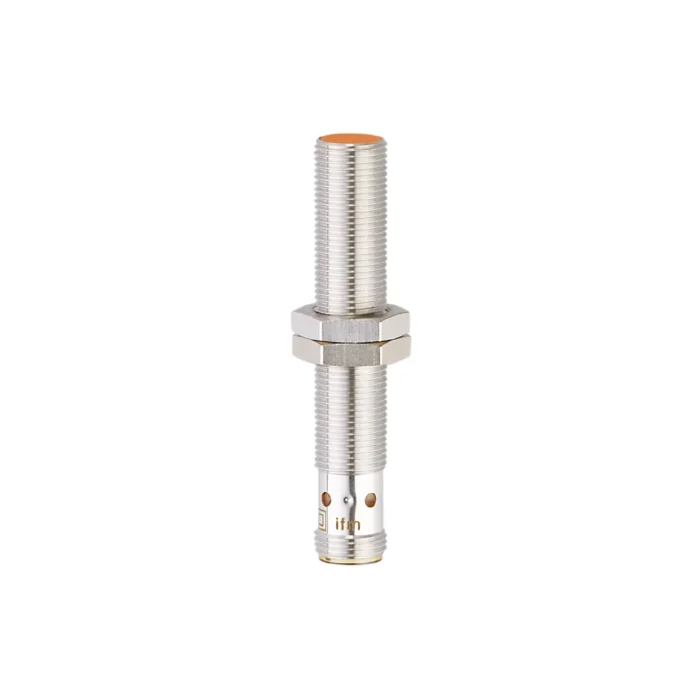

The Inductive Sensor IFS208 (IFKC004BASKG/2LED/US-104) is engineered for precision detection and reliability in harsh industrial environments. Featuring a robust threaded metal housing and gold-plated contacts, it ensures long service life and excellent resistance to wear. Its extended sensing range of 7 mm enhances uptime, while the clearly visible switching status indicator simplifies monitoring. With very high switching frequency and reverse polarity protection, this sensor is ideal for factory automation and other demanding applications where accuracy and durability are critical.
Specifications
| Category | Details |
|---|---|
| Product Name | Inductive Sensor IFS207 |
| Model | IFKC004-BASKG/2LED/US-104 |
| Electrical Design | PNP/NPN |
| Output Function | Normally open |
| Sensing Range | 4 mm |
| Housing | Threaded type |
| Dimensions | M12 × 1 / L = 70 mm |
| Operating Voltage | 10…30 V DC |
| Current Consumption | < 15 mA |
| Protection Class | II |
| Reverse Polarity Protection | Yes |
| Max. Voltage Drop (DC) | 2.8 V |
| Special Features | Gold-plated contacts, increased sensing range, optical setting aid |
| Application | Industrial applications / factory automation |
| Weight | 0.0311 kg |
