Description

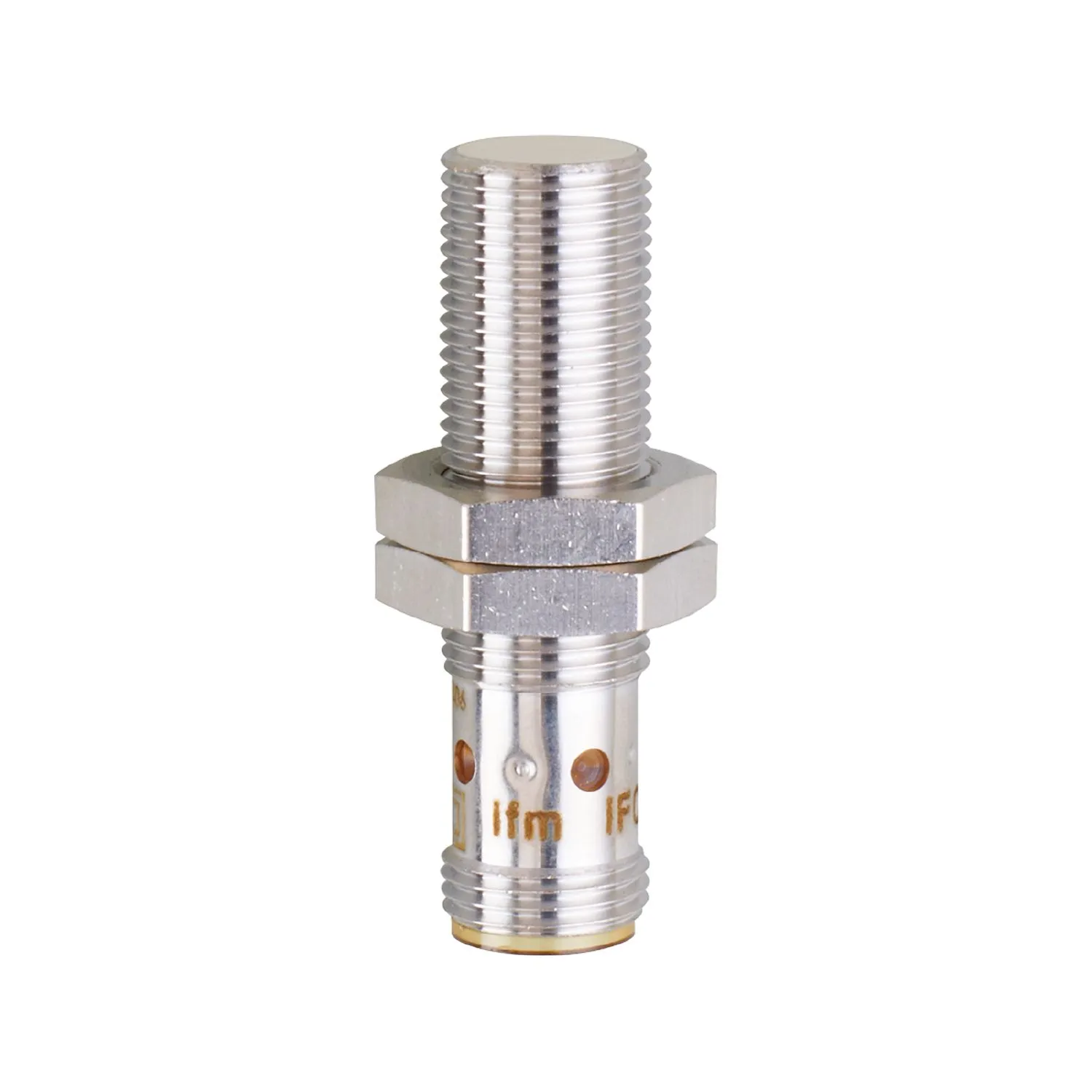

The Inductive Sensor IFC239 (IFB3002-BPKG/US-104) is a high-performance sensor designed for reliable position detection in demanding industrial applications. Built with a rugged metal housing and resistant to oils and coolants, it is especially suited for machine tools and metalworking environments. Its clearly visible switching status indication and permanently legible laser type label ensure ease of operation and long-term reliability. With a sensing range of 2 mm, gold-plated contacts, and a wide operating voltage range, this sensor guarantees precision, durability, and consistent performance even under harsh conditions.
Specifications
| Category | Details |
|---|---|
| Product Name | Inductive Sensor |
| Model | IFC239 (IFB3002-BPKG/US-104) |
| Electrical Design | PNP |
| Output Function | Normally open |
| Sensing Range | 2 mm |
| Housing Type | Threaded type |
| Dimensions | M12 x 1 / L = 45 mm |
| Special Features | Gold-plated contacts; Oil and coolant resistant |
| Application | Machine tools, coolants, lubricants, metalworking |
| Operating Voltage | 10…30 V DC |
| Current Consumption | < 10 mA |
| Protection Class | II |
| Reverse Polarity Protection | Yes |
| Max. Voltage Drop (DC) | 2.5 V |
| Weight | 0.026 kg |
