Description

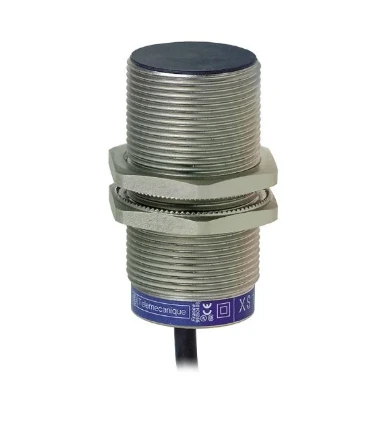

The XS630B1MAL2 is a robust inductive proximity sensor from the OsiSense XS6 series, built for general-purpose detection in industrial applications. Housed in a durable M30 cylindrical brass body, it features a 15mm flush-mountable sensing distance and supports both AC and DC power supply (24–240V).
Designed with a 2-wire wiring technique, this sensor delivers a discrete 1 NO output and handles switching capacities up to 200 mA (DC) and 300 mA (AC). With a 2-meter prewired cable, it offers quick and easy installation in control panels, conveyors, or automated systems.
The IP68-rated enclosure ensures high resistance to dust, water, and harsh conditions—making it suitable for demanding environments like food processing, manufacturing, and material handling.
Specifications
| Attribute | Details |
|---|---|
| Product Name | Inductive Proximity Sensor |
| Model / Reference | XS630B1MAL2 |
| Range | OsiSense XS |
| Series | XS6 – General Purpose |
| Sensor Design | Cylindrical M30 |
| Length | 62 mm |
| Material | Brass |
| Mounting Type | Flush Mountable |
| Body Type | Fixed |
| Sensing Distance (Sn) | 15 mm |
| Output Type | Discrete (1 NO) |
| Wiring Technique | 2-wire |
| Output Circuit Type | AC/DC |
| Rated Supply Voltage | 24 to 240 V AC/DC (50/60 Hz) |
| Switching Capacity | 5–200 mA DC / 5–300 mA AC |
| Electrical Connection | 2-meter prewired cable |
| Protection Rating | IP68, Double Insulation (IEC 60529) |
| Application Environment | Harsh industrial environments |
| Product Weight | 0.205 kg |
