Description

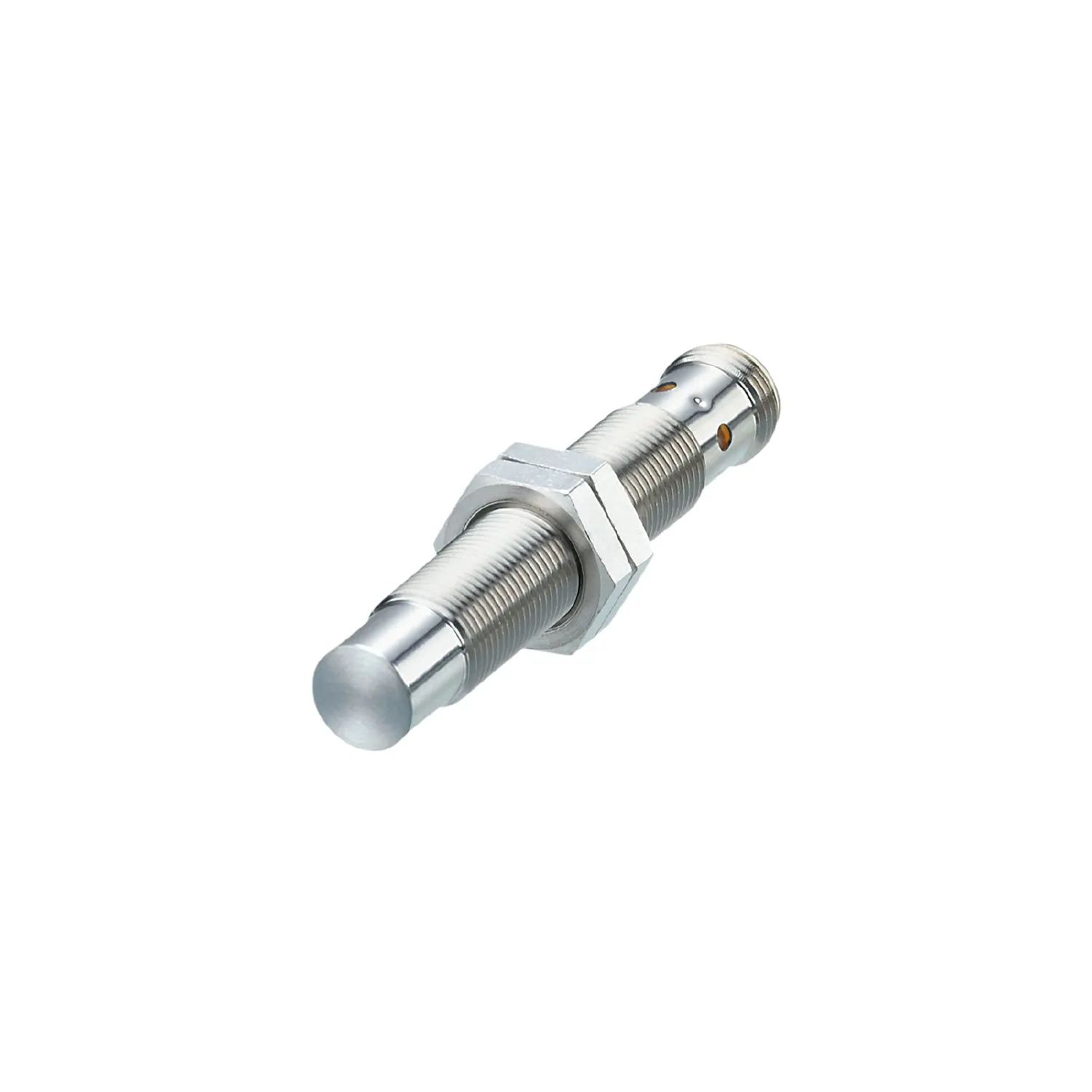

The Inductive Full-Metal Sensor IF505A (IFK3006-BPKG/AM/P/US104/3G/3D) is engineered for hazardous and heavy-duty environments, offering exceptional reliability and robustness. Featuring a full-metal housing including a metal sensing face, it withstands shock, vibration, and pressure up to 100 bar (10 MPa) at the sensing face. The sensor provides a 6 mm sensing range, a PNP normally open output, and gold-plated contacts for reliable and long-term connectivity. Its clearly visible switching status indication and permanently legible laser type label ensure ease of use and traceability. With reverse polarity protection and a high protection class, this sensor is a trusted choice for industrial automation in demanding conditions.
Specifications
| Category | Details |
|---|---|
| Product Name | Inductive Full-Metal Sensor |
| Model | IF505A (IFK3006-BPKG/AM/P/US104/3G/3D) |
| Housing Type | Threaded type, full-metal housing |
| Dimensions | M12 x 1 / L = 70 mm |
| Weight | 0.0649 kg |
| Sensing Range | 6 mm |
| Electrical Design | PNP |
| Output Function | Normally open |
| Operating Voltage | 10…30 V DC |
| Current Consumption | < 25 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Max. Voltage Drop | 2.5 V (DC switching output) |
| Special Features | Gold-plated contacts, increased sensing range, full-metal housing |
| Pressure Rating | 100 bar / 10 MPa (at sensing face) |
| Resistance | High shock and vibration resistance |
| Application | Hazardous areas, heavy-duty industrial applications |
