Description

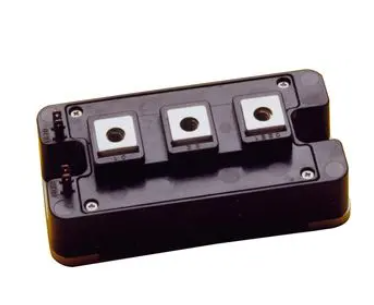

The Mitsubishi Electric CM200DY-24A IGBT Module is a high-performance dual (half-bridge) IGBT module engineered for industrial power electronics applications. This module is optimized for efficient switching in inverters, motor drives, and UPS systems, providing high current handling and voltage resistance.
Rated at 200 A and 1200 V, the CM200DY-24A ensures stable operation under demanding electrical loads. With a maximum operating temperature of 150 °C and a power rating of 1.34 kW, it supports robust and reliable performance in heavy-duty industrial systems.
The module is compact, easy to integrate, and suitable for use in industrial automation, renewable energy inverters, and motor control applications. Its dual IGBT configuration (half-bridge) provides flexible circuit design options for engineers and system integrators.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product Model | CM200DY-24A |
| Product Type | IGBT Module (Dual / Half-Bridge) |
| Category | Semiconductors – IGBT Module |
| Current Rating | 200 A |
| Voltage Rating | 1200 V |
| Power Rating | 1.34 kW |
| Maximum Operating Temperature | 150 °C |
| Module Type | Dual (Half-Bridge) |
| Weight | 0.91 kg |
