Description

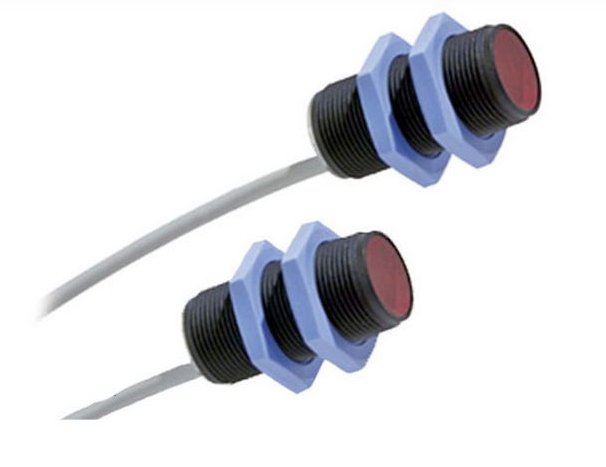

The IDEC S15-PA-3-B00-PK Photoelectric Sensor is a high-performance M18 tubular photoelectric sensor designed for reliable object detection in demanding industrial environments. Utilizing a polarized retroreflective red LED beam, this sensor delivers accurate detection with reduced interference from shiny or reflective surfaces.
Operating on 12–30 VDC and featuring a Dark-ON switching mode, the sensor provides dependable performance across a wide range of automation applications. Its rugged non-metallic housing and IP69K protection rating make it suitable for washdown environments, harsh industrial conditions, and high-pressure cleaning processes.
With a sensing range of up to 11.48 ft (3.5 m) and a fast 500 Hz switching frequency, the S15-PA-3-B00-PK is ideal for packaging lines, material handling systems, conveyors, and general factory automation where precision and durability are critical.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | IDEC |
| Manufacturer Part Number | S15-PA-3-B00-PK |
| Series | IDEC Photoelectric Sensors |
| Sensor Type | Photoelectric Sensor |
| Housing Style | M18 Tubular |
| Beam Type | Red LED |
| Operating Mode | Dark ON |
| Optical System | Polarized Retroreflective |
| Max Sensing Range | 11.48 ft (≈ 3.5 m) |
| Power Type | DC |
| Supply Voltage | 12–30 VDC |
| Nominal Voltage | 12 VDC, 30 VDC |
| Max Load Current | 0.02 A |
| Switching Frequency | 500 Hz |
| Connection Type | Cable |
| Housing Material | Non-Metallic |
| Protection Rating | IP69K |
| Approvals | CE, cULus |
| Net Weight | 0.21 kg |
| Gross Weight | 0.21 kg |
