Description

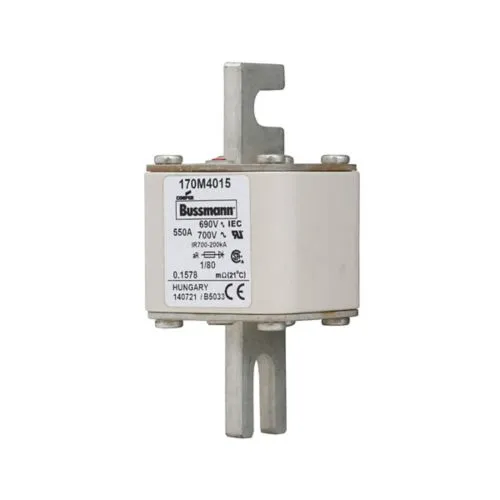

The 170M4015 belongs to the Eaton Bussmann high speed square body fuse series, optimized for semiconductor protection in DC drives, rectifiers, inverters, and common bus protection systems.
It supports up to 550 A at 690 V AC (IEC) with an exceptional 200 kA breaking capacity. Built to DIN 43653 standards, the fuse features blade-to-blade terminations and a top-mounted fuse status indicator for quick and safe condition monitoring.
Compliant with UL, CE, and IEC standards, the 170M4015 ensures reliable, compact high-performance protection.
Specifications
| Category | Details |
|---|---|
| Manufacturer | Eaton Bussmann |
| Product series | High Speed Square Body Fuse |
| Catalog number | 170M4015 |
| Fuse type | DIN 43653 |
| Fuse class | aR (semiconductor protection) |
| Amperage rating | 550 A |
| Rated voltage | 690 V AC (IEC) |
| Breaking capacity | 200 kA |
| Fuse size | 1 |
| Fuse indicator | Top-mounted status indicator |
| End connection | Blade end × blade end |
| Standards | IEC, CE, UL Recognized |
| Application | Semiconductor, DC common bus, DC drives, power converters/rectifiers |
| Mounting dimension | M10 |
| Compliances | RoHS Compliant |
| Dimensions (L × H × W) | 245 × 62 × 142 mm |
| Weight | 0.459 kg |
