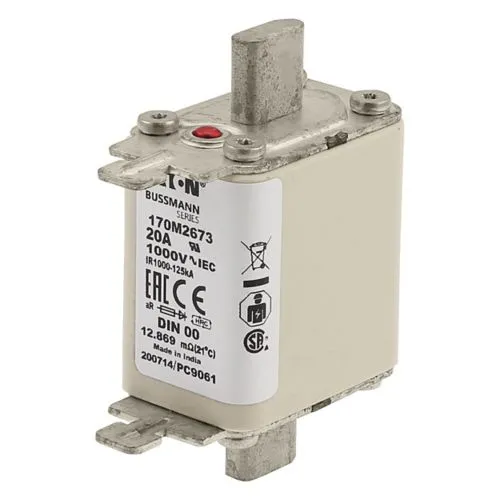

High Speed Square Body Fuse – 170M2673
Eaton Bussmann 170M2673 High Speed Fuse, 20 A, 1000 V AC (IEC), size 00, aR, with top-mounted status indicator and live gripping lugs.
Original price was: $31.69.$30.04Current price is: $30.04.
(Save $1.65)
In stock
Description
The 170M2673 is part of the Eaton Bussmann high speed square body fuse series, designed for semiconductor protection in demanding applications such as DC drives, rectifiers, inverters, and common bus protection.
This DIN 00 aR-class fuse supports up to 1000 V AC (IEC) and 20 A, with a breaking capacity of 125 kA. It includes a top-mounted status indicator for fast condition monitoring and live gripping lugs for safer installation. The unit complies with IEC standards and is RoHS compliant.
Specifications
| Category | Details |
|---|---|
| Manufacturer | Eaton Bussmann |
| Product series | High Speed Square Body Fuse |
| Catalog number | 170M2673 |
| Model code | FUSE 20A 1000V DIN 00 AR |
| Fuse class | aR (semiconductor protection) |
| Amperage rating | 20 A |
| Voltage rating | 1000 V AC (IEC) |
| Breaking capacity | 125 kA |
| Fuse size | 00 |
| Indicator | Top-mounted fuse status indicator |
| Features | Live gripping lugs |
| Standards | IEC |
| Certifications | RoHS Compliant (factory contact for details) |
| Application | Semiconductor, DC common bus, DC drives, power converters/rectifiers |
| Dimensions (L × H × W) | 79 × 60 × 30 mm |
| Weight | 0.208 kg |
Additional information
| Weight | 0.208 kg |
|---|---|
| Dimensions | 79 × 30 × 60 mm |
