Description

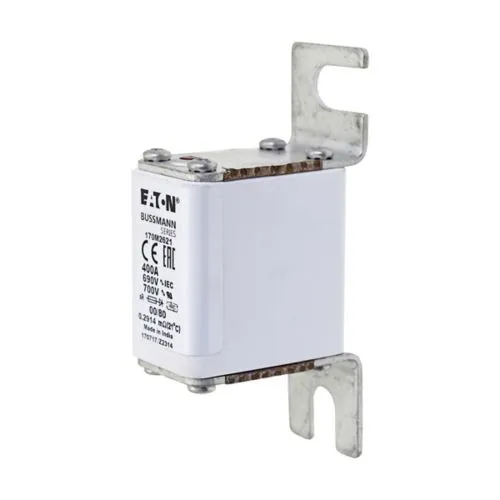

The 170M2621 belongs to the Eaton Bussmann high speed square body fuse series, designed to provide aR-class semiconductor protection for demanding industrial applications such as drives, UPS systems, and power converters.
Rated at 400 A, this size 00 fuse supports 690 VAC (IEC) and 700 V (UL), with a breaking capacity of 200 kA. It features a top-mounted /80 visual status indicator for easy condition monitoring and complies with DIN 43653 mounting standards with an M10 terminal dimension.
Specifications
| Category | Details |
|---|---|
| Manufacturer | Eaton Bussmann |
| Product series | High Speed Square Body Fuse |
| Catalog number | 170M2621 |
| Fuse class | aR (semiconductor protection) |
| Amperage rating | 400 A |
| Voltage rating | 690 VAC (IEC), 700 V (UL) |
| Breaking capacity | 200 kA |
| Fuse size | 00 |
| Indicator | Top-mounted /80 visual indicator |
| Standards | IEC, UL Recognized |
| Certifications | CE Marked, RoHS Compliant |
| Current type | AC |
| Center-to-center connection distance | 78 mm |
| Mounting dimension | M10 |
| Dimensions (L × H × W) | 98 × 51 × 28 mm |
| Weight | 0.23 kg |
